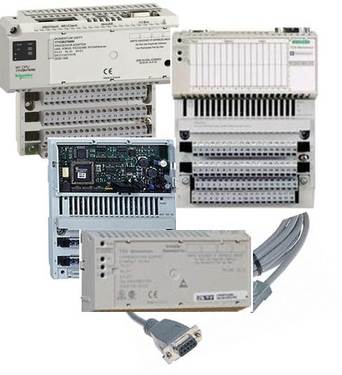

Distributed Analog Input Modicon Momentum - Conformal Coating - 4 Input

2 Year warranty


Part Number170AAI52040C
ManufacturerSchneider Electric
SeriesModicon Communication
Model #170AAI52040C
TypeIO Modules
Warranty2 Year
Width5.57 in (141.5 mm)
Range of productModicon Momentum automation platform
Product or component typeAnalogue input base
Analogue input number4
Analogue input typeDifferential
Analogue input range+/- 100 mV 15 bits + sign > 10000 kOhm
+/- 25 mV 15 bits + sign > 10000 kOhm
Thermocouple typeThermocouple R
Thermocouple T
Thermocouple E
Thermocouple K
Thermocouple N
Thermocouple S
Thermocouple J
Thermocouple B
Data formatFull 16 bits signed
Temperature probe typeNi 100 0.125 mA +/- 25 mV
Ni 1000 0.125 mA +/- 100 mV
Pt 100 0.125 mA +/- 25 mV
Pt 1000 0.125 mA +/- 100 mV
Update time500 ms
Isolation between channels400 V DC
Isolation between channels and ground500 V AC for 1 minute
Isolation between supply and ground500 V for 1 minute
Permissible common mode voltage100 V DC between channels to ground
115 V AC single or three phases between channels
200 V DC between channels
250 V AC between channels to ground
250 V AC single phase between channels
Common mode rejection120 dB DC between channels
130 dB 50 Hz AC between channels
135 dB DC between channels to ground
140 dB 60 Hz AC between channels
145 dB 50 Hz AC between channels to ground
155 dB 60 Hz AC between channels to ground
Serial mode rejection35 dB 50 Hz AC
45 dB 60 Hz AC
External power requirement+/- 30 V DC
Power dissipation in W<= 5.5 W
Reverse polarity protectionInternal
Protection typeInternal 2 A slow-blow
Associated fuse rating500 mA fast blow
Local signalling16 LEDs channel status
32 LEDs channel status
4 LEDs channel status
Electrical connection2 connectors for removable terminal blocks
Current consumption305 mA 24 V DC
Depth1.87 in (47.5 mm)
Height4.92 in (125 mm)
