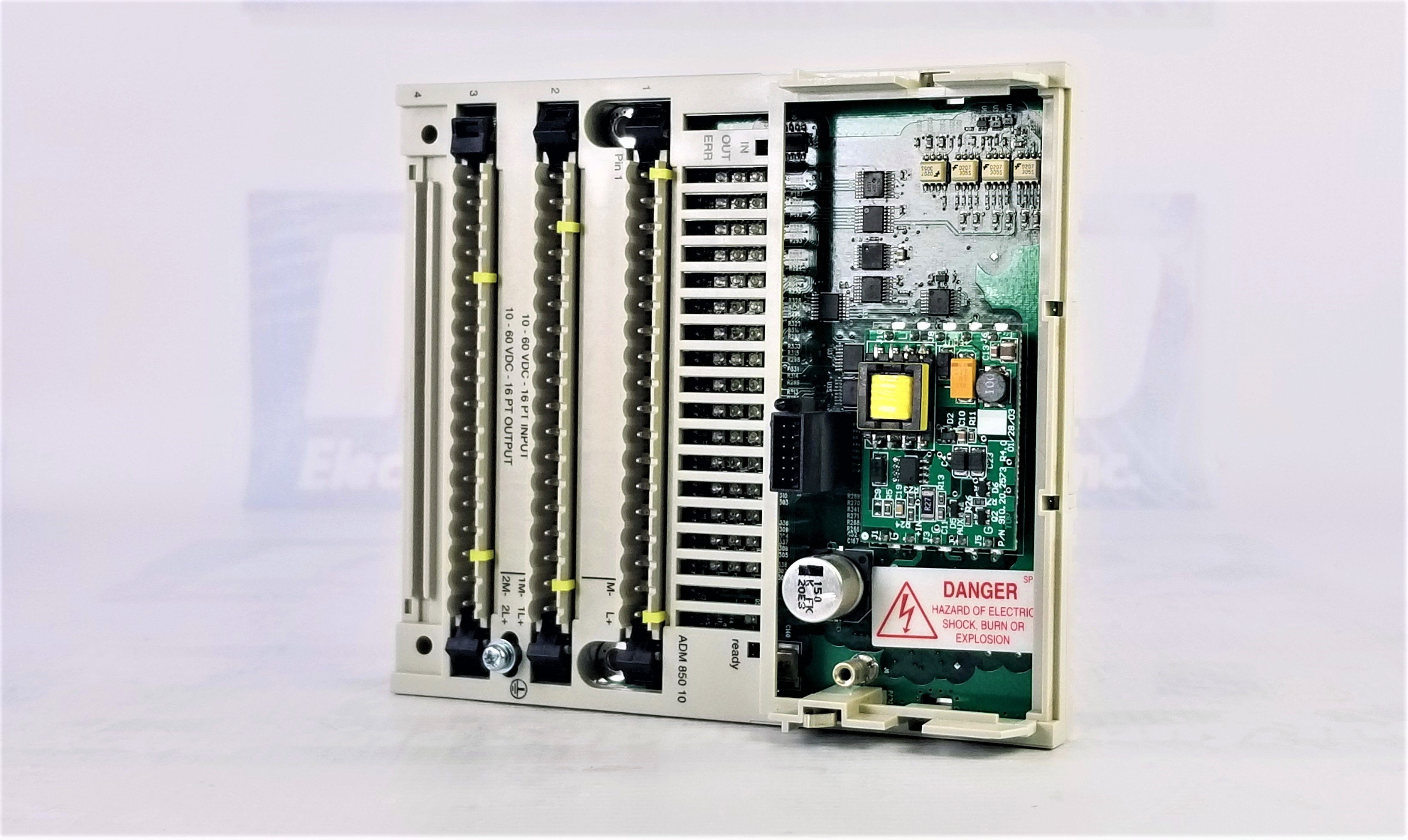

Discrete I/O Module Modicon Momentum - 16 I/O Relay

Available - call for stock

Free 2 Day Shipping
1 year warranty

Categories

Part Number170ADM85010
ManufacturerSchneider Electric
SeriesModicon Communication
Weight1lb
TypeBases
Warranty1 year
Width4.92 in (125 mm)
Range of productModicon Momentum automation platform
Product or component typeDiscrete relay I/O base DC
Group of channels1 group of 16 outputs
1 group of 16 inputs
Discrete input number16 IEC 1131-2 Type 3
Discrete input logicPositive
Discrete input voltage12 V DC
24 V DC
48 V DC
Discrete output number16
Discrete output typeSolid state switch
Discrete output voltage<= 60 V DC
12 V DC
24 V DC
48 V DC
Discrete output logicPositive
Protective treatmentTC
[Us] rated supply voltage12 V DC
24 V DC
48 V DC
Input voltage limits10...60 V
Voltage state 0 guaranteed< 10 V 48 V
< 2.5 V 12 V
< 5 V 24 V
Voltage state1 guaranteed> 11 V 24 V
> 30 V 48 V
> 7.5 V 12 V
Current state 1 guaranteed2.3 mA 12 V
2.7 mA 24 V
2.9 mA 48 V
Discrete output current0.5 A per point
7 A 140 °F (60 °C) per module
8 A 122 °F (50 °C) per group
Leakage current< 1 mA 60 V output circuit
Peak output current5 A
Voltage drop< 1 V 0.5 A at state 1 output circuit
Fault typeOverload on output
Response time< 0.1 ms from state 0 to state 1 on output
< 0.1 ms from state 1 to state 0 on output
2.2 ms from state 0 to state 1 on input
3.3 ms from state 1 to state 0 on input
Isolation between group of I/O channels707 V DC
Isolation between channels and bus707 V DC
Power dissipation6.0 + (0.144 x number of input points) + (0.25 x number of output points)
Current consumption125 mA 48 V DC
250 mA 24 V DC
500 mA 12 V DC
Depth1.87 in (47.5 mm)
