170ADO34000C

170ADO34000C

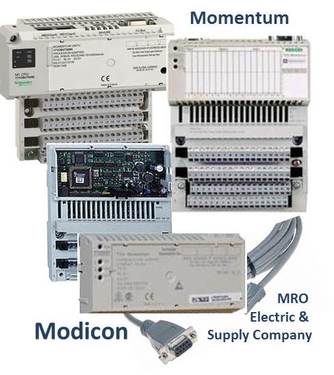

Discrete Output Module Modicon Momentum - Conformal Coating - 16 O Solid State
Available - call for stock

Free 2 Day Shipping
1 year warranty

Categories

ManufacturerSchneider Electric
SeriesModicon Communication
Width4.92 in (125 mm)
Range of productModicon Momentum automation platform
Product or component typeDiscrete output base DC
Group of channels2 groups of 8 outputs
Discrete output number16
Discrete output typeSolid state switch
Discrete output voltage24 V DC
Current per channel<= 0.5 A
Short-circuit protectionOutputs electronically protected
Protective treatmentTC
Conformal coating Humiseal 1A33
System Voltage24 V DC
Discrete output current4 A per group
8 A per module
Leakage current< 1 mA 24 V DC
Surge current5 A 1 ms
Voltage drop< 0.5 V 0.5 A at state 1
Output overload protectionOutputs electronically protected
Response time0.1 ms from state 0 to state 1
0.1 ms from state 1 to state 0
Isolation between channels and bus500 V AC
Power dissipation4.5 W maximum
3.5 W typical
MarkingCE
Local signalling16 LEDs channel status
Current consumption250 mA 24 V DC
Terminals description PLC n°1(15)OUT_DIS#15
(6)OUT_DIS#6
(2L+)PW_POS
(14)OUT_DIS#14
(4)OUT_DIS#4
(M-)PW_NEG
TB
(1)OUT_DIS#1
(10)OUT_DIS#10
(3)OUT_DIS#3
(L+)PW_POS
(16)OUT_DIS#16
(5)OUT_DIS#5
(13)OUT_DIS#13
(8)OUT_DIS#8
(1L+)PW_POS
(12)OUT_DIS#12
(7)OUT_DIS#7
(9)OUT_DIS#9
(11)OUT_DIS#11
(2)OUT_DIS#2
Depth1.87 in (47.5 mm)
Height5.57 in (141.5 mm)
