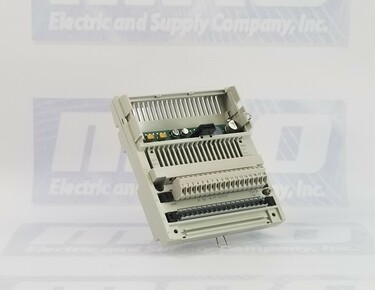

MODICON MOMENTUM DISCRETE OUTPUT MODULE- 16 O SOLID STATE
12 in stock
Ships Today
Free Shipping
2 Year warranty
| Part Number | 170ADO34000 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | 170-ADO-340-00 |
| Warranty | 2 Year |
| Width | 4.92 in (125 mm) |
| Range of product | Modicon Momentum automation platform |
| Product or component type | Discrete output base DC |
| Group of channels | 2 groups of 8 outputs |
| Discrete output number | 16 |
| Discrete output type | Solid state switch |
| Discrete output voltage | 24 V DC |
| Current per channel | <= 0.5 A |
| Short-circuit protection | Outputs electronically protected |
| Protective treatment | TC |
| System Voltage | 24 V DC |
| Discrete output current | 4 A per group |
| 8 A per module |
| Leakage current | < 1 mA 24 V DC |
| Surge current | 5 A 1 ms |
| Voltage drop | < 0.5 V 0.5 A at state 1 |
| Output overload protection | Outputs electronically protected |
| Response time | 0.1 ms from state 0 to state 1 |
| 0.1 ms from state 1 to state 0 | |
| Isolation between channels and bus | 500 V AC |
| Power dissipation | 3.5 W typical |
| 4.5 W maximum | |
| Marking | CE |
| Local signalling | 16 LEDs channel status |
| Current consumption | 250 mA 24 V DC |
| Terminals description PLC n°1 | (3)OUT_DIS#3 |
| TB | |
| (L+)PW_POS | |
| (15)OUT_DIS#15 | |
| (9)OUT_DIS#9 | |
| (7)OUT_DIS#7 |
| (16)OUT_DIS#16 | |
| (1L+)PW_POS | |
| (8)OUT_DIS#8 | |
| (14)OUT_DIS#14 | |
| (5)OUT_DIS#5 | |
| (10)OUT_DIS#10 | |
| (12)OUT_DIS#12 | |
| (4)OUT_DIS#4 | |
| (M-)PW_NEG | |
| (11)OUT_DIS#11 | |
| (2)OUT_DIS#2 | |
| (6)OUT_DIS#6 | |
| (13)OUT_DIS#13 | |
| (2L+)PW_POS | |
| (1)OUT_DIS#1 | |
| Depth | 1.87 in (47.5 mm) |
| Height | 5.57 in (141.5 mm) |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 170ADO34000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 170ADO34000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 170ADO34000, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 170ADO34000 for credit when ordering from MRO Electric
Overview of the 170ADO34000 Module
The Schneider Electric 170ADO34000 is a discrete output module within the Modicon Momentum automation platform. Designed for distributed control architectures, it provides 16 solid-state outputs organized into two groups of eight. Operating at 24 V DC, it is tailored for applications requiring reliable and rapid switching capabilities, making it suitable for various industrial environments.
Each of the 16 outputs can handle a current of up to 0.5 A, with a maximum of 4 A per group and 8 A per module. The module features electronic protection against short circuits and overloads, ensuring durability and safety. It boasts a swift response time of 0.1 ms for activation and deactivation, facilitating precise control in time-sensitive applications. Additionally, the module maintains a low leakage current of less than 1 mA at 24 V DC and a voltage drop of under 0.5 V at 0.5 A in the 'on' state.
Measuring 125 mm in width, 47.5 mm in depth, 141.5 mm in height, and weighing approximately 0.21 kg, the 170ADO34000 is compact and lightweight, allowing easy integration into control panels. It features 16 LEDs for channel status indication, providing immediate visual feedback on the operational state of each output. The module is designed for wall mounting and is suitable for use in environments with a relative humidity of up to 95% without condensation.
The 170ADO34000 module is certified by CE, UL, CSA, and FM Class 1 Division 2, affirming its compliance with international safety and performance standards. It is designed to withstand harsh industrial conditions, with a protective treatment classified as TC. The module also demonstrates resistance to electrostatic discharge and electromagnetic fields, ensuring reliable operation in electrically noisy environments.
MRO Electric and Supply offers the Schneider Electric 170ADO34000 with a 2-year warranty, ensuring its quality and reliability. The module is available for immediate shipment, with free shipping included, facilitating prompt deployment in your automation systems.
What is the primary function of the 170ADO34000 module?
The 170ADO34000 is a discrete output module that provides 16 solid-state outputs for controlling devices in an automation system.
What voltage does this module operate at?
It operates at a discrete output voltage of 24 V DC.
How many outputs does the module have?
The module has 16 discrete outputs, organized into two groups of eight.
What is the maximum current per output channel?
Each output channel can handle up to 0.5 A.
Does the module have short-circuit protection?
Yes, it features electronic protection against short circuits and overloads.
What is the response time of the outputs?
The module has a response time of 0.1 ms for switching on and off.
What are the dimensions of the module?
It measures 125 mm in width, 47.5 mm in depth, and 141.5 mm in height.
What certifications does the module have?
The module is certified by CE, UL, CSA, and FM Class 1 Division 2.
Is the module suitable for harsh environments?
It has a TC protective treatment and is resistant to electrostatic discharge and electromagnetic fields.
Where can I purchase the 170ADO34000 module?
It is available for immediate shipment with a 2-year MRO Electric and Supply warranty, including free shipping.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 170ADO34000, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 170ADO34000 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
