170ADO53050

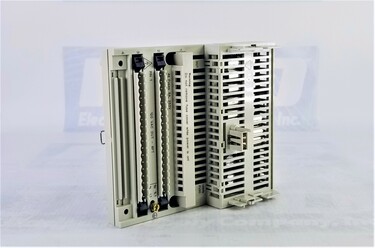

Schneider Electric 170ADO53050

170ADO53050

Discrete Output Module Modicon Momentum - 8 O Solid State
2 new in stock
1 year warranty
Call (800) 691-8511 for pricing
Click for Quote

Testimonials

Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 170ADO53050, take a look at more from our Modicon Communication line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.

Specifications

ManufacturerSchneider Electric
SeriesModicon Communication
Width4.92 in (125 mm)
Range of productModicon Momentum automation platform
Product or component typeDiscrete output base AC
Group of channels2 groups of 4 outputs
Discrete output number8
Discrete output typeTriac
Discrete output voltage120 V AC
Current per channel<= 2 A
Short-circuit protectionInternal fuse, 5 A slow-blow per group
Protective treatmentTC
System Voltage120 V AC
Discrete output current4 A per group
8 A per module
Minimum output current5 mA
Leakage current1.9 mA 120 V AC
Surge current10 A for 2 cycles
15 A for 1 cycle
5 A for 3 cycles
Voltage drop< 1.5 V 2 A at state 1
Output overload protectionInternal fuse
Response time1/2 x 1/f (= 0.5 of one line cycle) from state 0 to state 1
1/2 x 1/f (= 0.5 of one line cycle) from state 1 to state 0
Isolation between channels and bus1780 V AC for 1 minute
Power dissipation6 W typical
7.5 W maximum
MarkingCE
Local signalling8 LEDs channel status
Current consumption125 mA 120 V AC
Terminals description PLC n°1(1L+)PW
(1)OUT_DIS#1
(2)OUT_DIS#2
(3)OUT_DIS#3
(7)OUT_DIS#7
(8)OUT_DIS#8
(4)OUT_DIS#4
TB
(1N)PW
(6)OUT_DIS#6
(5)OUT_DIS#5
Depth1.87 in (47.5 mm)
Height5.57 in (141.5 mm)
