6AV2124-0QC02-0AX0

2-year Warranty

Same Day Shipping

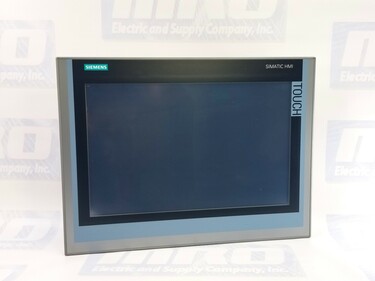

Siemens 6AV2124-0QC02-0AX0

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Siemens

DESCRIPTION: COMFORT PANEL, TOUCH OPERATION, 15 WIDESCREEN-TFT-DISPLAY, 16 MIL. COLORS

PRODUCT TYPE INFO: SIMATIC HMI TP1500

4 in stock

Ships Today


Free Shipping

2 Year warranty

Part Number6AV2124-0QC02-0AX0
ManufacturerSiemens
TypeHMIs
Model #6AV21240QC020AX0
Warranty2 Year
DesignationTP1500 Comfort
DisplayTFT
Screen diagonal15.4 in
Display width331.2 mm
Display height207 mm
Number of colors16 777 216
Resolution1 280 (H) pixel, 800 (V) Pixel
MTBF backlighting80 000 h
DesignTouch operation
Mounting positionVertical
VoltageDC
Rated value24 V
Current consumption1.5 A
Active power input36 W
MemoryFlash, RAM
Memory available24 Mbyte
ProtocolsPROFINET, IRT, PROFIBUS, MPI

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6AV2124-0QC02-0AX0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6AV2124-0QC02-0AX0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6AV2124-0QC02-0AX0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 7lbs

Want it shipped today?

  • Order within the next 12 hours and 55 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6AV2124-0QC02-0AX0 for credit when ordering from MRO Electric

How do you move and copy archives with the 6AV2124-0QC02-0AX0’s WinCC Comfort/WinCC Advanced safely?

  • The following are a list of system function calls from the WinCC Advanced V15 manual that are recommended when moving/copying archives: CloseAllArchives ArchiveLogFile OpenAllArchives If Audit Trails is being used with the system function "ArchiveLogFile", make sure you always use the "Move (hmiMove)" mode. If you do not, be aware this ia violation of FDA regulations due to double data management. Also note when using this specific procedure, the next function could start before the previous has been finished, leading to a loss of data. To avoid this, you can use system messages generated after the termination of each system function, as one of these messages has to be received before the next step is triggered.

How chemical resistant is the SIMATIC HMI 6AV2124-0QC02-0AX0 panel?

  • To ensure constant functioning of the 6AV2124-0QC02-0AX0 panel, always check the integrity of the panel front. If the panel front is affected by environmental influences or chemical substances, swelling, dissolving, flaking, and general alterations to the front panel materials can occur. If such a thing occurs, the 6AV2124-0QC02-0AX0 panel could be rendered inoperable. To prevent this, diverse tests are performed on the SIMATIC HMI operator panels. If you ever experience your 6AV2124-0QC02-0AX0 panel being damaged in such a way, feel free to contact MRO Electric or learn here about our repair services.

Are there virus scanners for the SIMATIC 6AV2124-0QC02-0AX0 Comfort Panels?

  • The threat from viruses for Comfort Panels using the Windows Embedded CE operating system is generally considered to be very low, which is why commercial virus scanners are not available. Reasons for this include the following: Viruses must be written specifically for Windows Embedded CE and processor type. Installing new software for the operating system is impossible as the operating system is considered to be "closed". A virus cannot install itself. Autostart functions are blocked on the 6AV2124-0QC02-0AX0 Panels. Only the Windows components necessary for the runtime to function are present on the panel, which means a virus couldn’t impact any other functions. The possibilities of remote access are extremely low, meaning that new applications or viruses could only be installed directly on the panel. Due to this extremely low threat potential, there are no virus scanners for Windows Embedded CE for the 6AV2124-0QC02-0AX0 panel at this time.
MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6AV2124-0QC02-0AX0 Overview

Technical Description: SIMATIC HMI TP1500 Comfort

Introduction to the 6AV21240QC020AX0 SIMATIC HMI TP1500 Comfort Panel

The 6AV21240QC020AX0, part of the Siemens SIMATIC HMI product family, is a TP1500 Comfort Panel designed to provide a user-friendly interface for industrial control systems. This Comfort Panel is renowned for its large 15" widescreen TFT display, offering vivid visualization with 16 million colors. Built for the rigors of industrial applications, it's equipped with a PROFINET interface and an MPI/PROFIBUS DP interface for seamless integration with various Siemens automation products.

Key Features of the 6AV21240QC020AX0

One of the standout features of the 6AV21240QC020AX0 is its touch operation capability. With an analog-resistive touch screen, operators can interact intuitively with the system. The device also boasts a 24 MB configuration memory, ensuring smooth performance and enough space for complex applications. This panel runs on the Windows CE 6.0 operating system, providing a familiar environment for developers and users alike. Furthermore, it can be configured using the WinCC Comfort V11 SP2 software or its successor, ensuring flexibility and compatibility for programming needs.

1. General Overview

The SIMATIC HMI TP1500 Comfort is a state-of-the-art touchscreen panel designed for industrial applications. This device facilitates an intuitive user experience and provides versatile interfacing with various industrial systems. Its impressive 15" widescreen TFT display with 16 million colors ensures clarity and precision in visual representation.

2. Display Specifications

  • Design: TFT
  • Screen Size: 15.4 inches, with a resolution of 1280 x 800 pixels
  • Color Depth: 16,777,216 colors
  • Backlighting: MTBF of 80,000 hours at 25 °C and dimmability ranging from 0-100%

3. Control Elements and Touch Operation

  • Keyboard: Numeric and alphanumeric keyboards are integrated.
  • Touch: The device features an analog-resistive touchscreen, with 40 direct touch buttons as S7 input I/O.

4. Power and Memory

  • Supply Voltage: DC 24V (with a permissible range of 19.2V - 28.8V)
  • Power Consumption: Typical active power input is 36W.
  • Memory: 24 MB available for user data, supported by both Flash and RAM.

5. Interfaces and Protocols

The device boasts a range of interfaces including:

  • Ethernet: 2 industrial Ethernet interfaces, 2 USB 2.0 interfaces, 2 SD card slots.
  • Protocols: Supports PROFINET, PROFIBUS, EtherNet/IP, MPI, and several Ethernet-based protocols such as TCP/IP, DHCP, and SNMP.

6. Operating Conditions and Protection

  • Ambient Temperature: The device can operate in temperatures ranging from 0°C to 50°C.
  • Protection: Front: IP65, Rear: IP20
  • Humidity: It can function in up to 90% relative humidity without condensation.

7. Configuration and Software

Configurable using WinCC Comfort V11 SP2 and above. It supports multiple languages, up to 32 online/runtime languages, and 32 project languages. Features various functionalities like alarm systems, message indicators, and recipe management.

8. Dimensions and Build

  • Material: The front is made of aluminum, ensuring durability.
  • Dimensions: The housing front width is 415 mm, height is 310 mm, with an overall depth of 75 mm.
  • Weight: The unit weighs 5.2 kg without packaging.

FAQ Section

Q1: What is the primary use of the SIMATIC HMI TP1500 Comfort?

A: It is designed for industrial applications, allowing operators to interface with machinery, monitor operations, and input commands.

Q2: Can I adjust the brightness of the display?

A: Yes, the backlighting is dimmable between 0-100%.

Q3: Is there support for external storage?

A: Absolutely! The device has slots for SD cards and USB interfaces.

Q4: What kind of touch technology is used in the device?

A: The device uses an analog-resistive touchscreen.

Q5: Can I configure the device using any software?

A: It's configurable using WinCC Comfort V11 SP2 and above. Ensure you have the right version of the software.

The SIMATIC HMI TP1500 Comfort is a robust and versatile touch panel solution suitable for various industrial setups. Its mix of advanced features, high-quality display, and extensive interfacing options make it a top choice for modern industrial applications.
