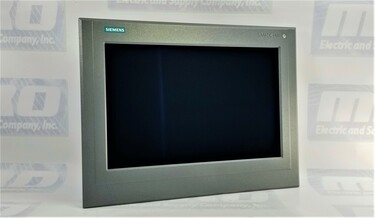

SIMATIC HMI TP1500 COMFORT OUTDOOR, COMFORT PANEL, TOUCH OPERATION, 15"
| Part Number | 6AV2124-0QC13-0AX0 |
| Manufacturer | Siemens |
| Type | HMIs |
| Model # | 6AV21240QC130AX0 |
| Warranty | 2 Year |
| Range | SIMATIC |
| SIMATIC | HMI TP1500 |
| Comfort panel | Touch operation |
| Interface | PROFINET, MPI/PROFIBUS DP |
| Screen | 15" widescreen |
| Display | TFT |
| Colors | 16 million |
| Memory | 24 MB |
| Screen diagonal | 15.4 in |
| Display height | 207 mm |
| Display width | 331.2 mm |
| Resolution (horizontal) | 1,280 Pixels |
| Resolution (vertical) | 800 Pixels |
| MTBF backlighting | 80 000 h |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6AV2124-0QC13-0AX0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6AV2124-0QC13-0AX0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6AV2124-0QC13-0AX0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 6AV2124-0QC13-0AX0 for credit when ordering from MRO Electric
The Siemens 6AV21240QC130AX0 is a powerful Human Machine Interface (HMI) designed to enhance outdoor industrial operations. As part of the SIMATIC HMI TP1500 Comfort Outdoor series, this rugged and reliable Comfort Panel offers intuitive touch operation, featuring a 15-inch widescreen TFT display with 16 million colors. Equipped with essential interfaces such as PROFINET, MPI, and PROFIBUS DP, the 6AV21240QC130AX0 facilitates seamless integration into diverse industrial networks. With a generous 12 MB configuration memory, this HMI empowers users with comprehensive data visualization and efficient control for demanding outdoor applications.
The 6AV21240QC130AX0 comes with a user-friendly touch operation, allowing operators to interact with the HMI through the vivid 15-inch widescreen TFT display. The responsive touch interface simplifies navigation and configuration tasks, making it easy for users to access critical data and control industrial processes with intuitive gestures. Whether it's monitoring production lines, adjusting parameters, or analyzing real-time data, the touch operation streamlines user interaction, reducing learning curves and enhancing overall productivity.
The Comfort Panel's 15-inch widescreen TFT display offers an impressive 16 million colors, ensuring vivid and detailed visualization of industrial processes and data. The high-resolution screen delivers sharp graphics and clear representations, making it easier for operators to interpret complex data and make informed decisions. The immersive visualization capabilities of the 6AV21240QC130AX0 help improve situational awareness, enabling users to monitor processes and respond to changes effectively.
The SIMATIC HMI TP1500 Comfort Outdoor series is designed to withstand harsh outdoor conditions. The 6AV21240QC130AX0 is built to be rugged and robust, featuring an enclosure that protects against dust, water, and environmental impacts. Its IP65-rated front ensures resistance to dust and water ingress, making it suitable for outdoor installations. The Comfort Panel's robust construction ensures reliable performance even in extreme temperatures, making it ideal for applications in industries such as oil and gas, mining, agriculture, and transportation.
With its PROFINET interface, the 6AV21240QC130AX0 enables seamless integration into modern industrial networks, supporting high-speed data exchange between HMI and PLC devices. The MPI/PROFIBUS DP interface further extends its compatibility, allowing for communication with a wide range of automation devices and controllers. The HMI's ability to connect to diverse industrial protocols enhances its versatility and adaptability, making it a future-proof investment for Industry 4.0 applications.
The 12 MB configuration memory of the 6AV21240QC130AX0 empowers users to store and access extensive data sets, visualization screens, and configurations. This ample memory capacity allows for the development of complex and customized HMI applications, accommodating large amounts of data without compromising performance. The Comfort Panel's generous configuration memory ensures that users can implement sophisticated control schemes, historical data logging, and recipe management, enhancing operational efficiency and process optimization.
The Siemens TIA Portal engineering software simplifies the configuration and programming of the 6AV21240QC130AX0, offering a user-friendly environment for HMI development. The TIA Portal's integrated engineering framework enables seamless data exchange between HMI and PLC systems, streamlining project development and commissioning processes. The software's intuitive interface facilitates efficient project setup, configuration, and troubleshooting, reducing engineering time and accelerating time-to-market.
1. What is the part number and model name of this HMI?
The part number is 6AV2124-0QC13-0AX0, and it belongs to the SIMATIC HMI TP1500 Comfort Panel series.
2. What type of operation does this panel support?
This model supports touch operation, allowing users to interact directly with the screen for controlling and monitoring functions.
3. What is the screen size of the TP1500 Comfort Panel?
The HMI features a 15.4-inch widescreen display, providing a large and clear viewing area for industrial applications.
4. What is the resolution of the display?
The display has a resolution of 1,280 x 800 pixels. This ensures that graphics and text are sharp and easily readable.
5. What is the maximum number of colors supported by the display?
The screen supports 16 million colors, which enhances the quality of visual elements and graphics on the panel.
6. What is the lifespan of the backlighting on this HMI?
The backlighting has an MTBF (Mean Time Between Failures) of 80,000 hours, ensuring a long-lasting display for continuous operation.
7. What communication interfaces does the TP1500 Comfort Panel support?
The panel supports PROFINET, MPI/PROFIBUS DP interfaces, providing connectivity to a wide range of automation devices and networks.
8. What are the dimensions of the display?
The display height is 207 mm, and the display width is 331.2 mm, offering ample space for displaying various parameters and controls.
9. How much memory is available on this HMI?
The TP1500 Comfort Panel has a memory capacity of 24 MB, which can be used for storing and running applications and configurations.
10. Is there a warranty provided with this HMI panel?
Yes, this product comes with a 2-year warranty from MRO Electric and Supply.
11. What is the primary display technology used in the TP1500 Comfort Panel?
The panel uses a TFT (Thin Film Transistor) display, known for its vibrant colors and excellent viewing angles, making it suitable for industrial environments.
12. What is the range of Siemens products to which this panel belongs?
The TP1500 belongs to the SIMATIC HMI (Human-Machine Interface) Comfort Panel range.
These FAQs provide insights into the key features, specifications, and operational details of the Siemens HMI TP1500 Comfort Panel, helping users understand its capabilities and benefits.
Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as FANUC and Yaskawa.
Check out the rest of our Siemens product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 6AV2124-0QC13-0AX0, take a look at more from our HMIs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 6AV2124-0QC13-0AX0 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
