Siemens 6AV2124-0QC02-0AX1

Siemens 6AV2124-0QC02-0AX1 Features

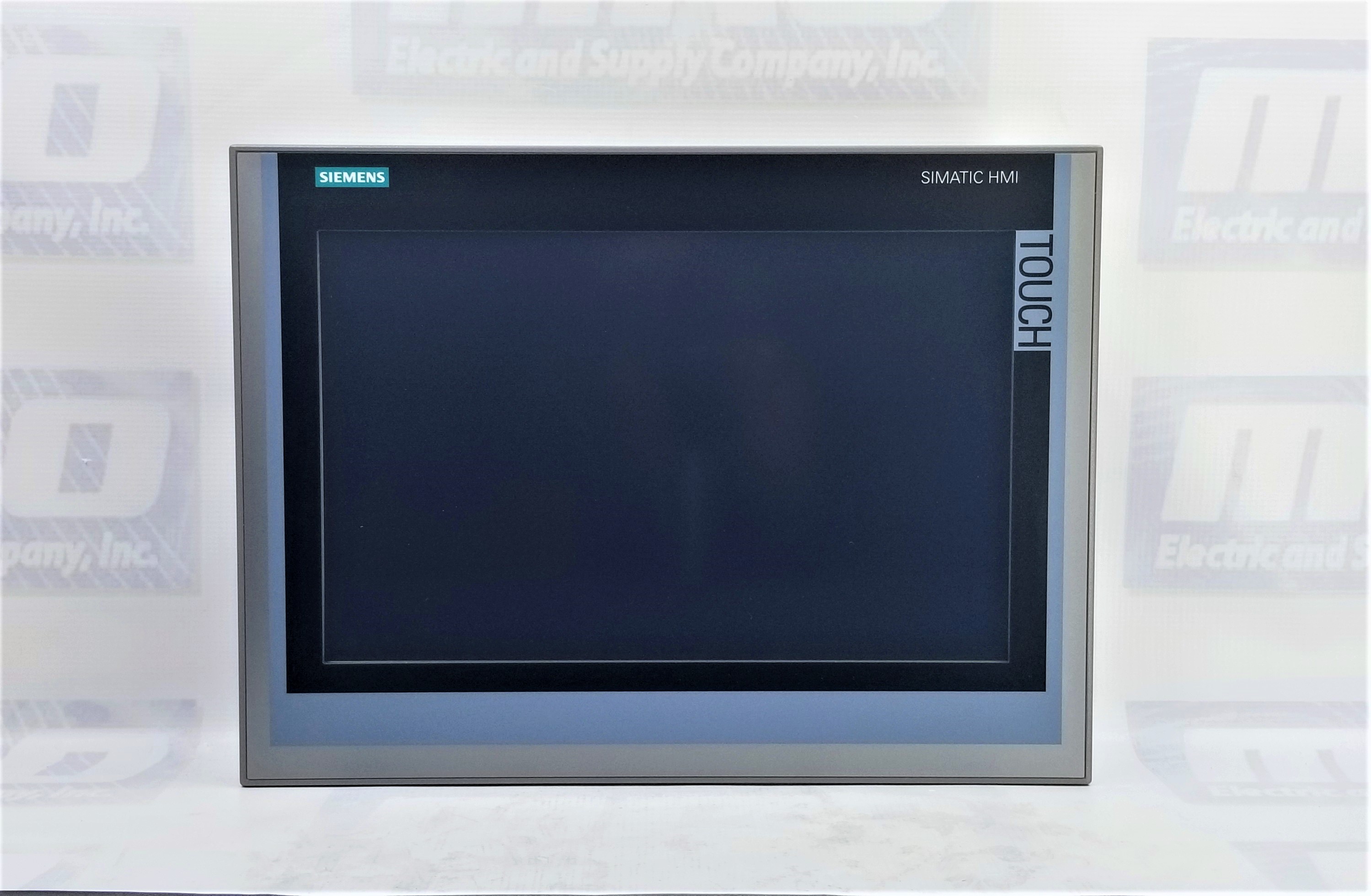

The Siemens 6AV2124-0QC02-0AX1 is a high-performance Human-Machine Interface (HMI) designed to meet the demands of modern industrial automation. As part of Siemens’ TP1500 Comfort series, this HMI offers exceptional performance, intuitive operation, and versatile connectivity options that make it a top choice for engineers, technicians, and operators across a variety of industries. Whether deployed in manufacturing plants, process control systems, or high-demand logistics environments, it delivers a perfect balance of visual clarity, processing power, and rugged durability.

In today’s connected industrial landscape, efficient operator control and accurate process monitoring are essential. The TP1500 Comfort series is built with both of these needs in mind—offering a high-resolution widescreen display, advanced touch capabilities, and multiple industrial communication protocols. Designed with Siemens’ decades-long expertise in automation, the 6AV2124-0QC02-0AX1 ensures seamless integration into your control system while providing the reliability required for continuous operation.

Display and Interface

One of the defining features of the 6AV2124-0QC02-0AX1 is its 15.4-inch TFT widescreen display, which provides operators with a generous viewing area for complex process visualizations, detailed schematics, and critical system data. With a resolution of 1280 x 800 pixels and support for 16.7 million colors, the display delivers exceptional image quality—making it easier to interpret process information at a glance.

The dimmable LED backlight ensures the screen is usable in both brightly lit environments and low-light control rooms. This adjustability reduces operator eye strain and supports extended viewing times during long shifts. Siemens has designed this display with industrial-grade durability, ensuring reliable performance even in demanding environments.

Performance and Memory

At the core of the 6AV2124-0QC02-0AX1 is a robust processing platform optimized for fast, stable operation in industrial applications. The device features 24 MB of available memory (Flash and RAM), ensuring it can handle complex visualizations, multi-screen projects, and large data sets without lag. This capacity also allows for the storage of comprehensive process images, alarm history, and operational logs.

Its efficient architecture ensures quick response times when switching between screens or retrieving archived data. This is particularly important in critical operations where real-time visibility is essential for decision-making.

An alphanumeric keyboard enhances versatility by allowing operators to input data, rename variables, or enter command strings quickly. This hybrid approach—offering both touchscreen and physical input options—ensures flexibility in environments where gloves, dust, or moisture may impact touchscreen usability.

Connectivity and Communication

The 6AV2124-0QC02-0AX1 is designed for seamless integration into industrial networks. It features two Ethernet ports for fast and reliable communication and two USB interfaces for additional connectivity options. The device supports multiple communication protocols, including Profinet, IRT, MRP, Profibus, and MPI, ensuring compatibility with various automation systems. This extensive protocol support allows for easy integration into existing network infrastructures.

6AV2124-0QC02-0AX1 Installation and Compliance

Designed for vertical mounting, the 6AV2124-0QC02-0AX1 fits neatly into industrial panels and operator stations. Its construction meets a variety of international safety and performance standards, including CE mark, cULus, RCM, KC, and EAC certifications. This ensures that it is compliant for use in industrial settings worldwide.

The panel’s design not only prioritizes operational safety but also long-term durability. With an operating temperature range suitable for many factory floor environments, it performs reliably in both climate-controlled control rooms and harsher on-site conditions.

Shipping & Warranty

MRO Electric ensures a fast, reliable delivery process for the Siemens 6AV2124-0QC02-0AX1. With a shipping weight of just 9 lbs, the panel is compact and manageable, minimizing handling complexity during transit. Orders placed within standard business hours are typically processed the same day.

The 6AV2124-0QC02-0AX1 is also backed by MRO Electric’s 2-year warranty, which covers both new purchases and repairs. This guarantee reflects MRO Electric’s commitment to quality and reliability. If any issues arise within the warranty period, the unit will be promptly evaluated, repaired, or replaced, ensuring minimal downtime and dependable performance.

Siemens 6AV2124-0QC02-0AX1 Specifications

The Siemens 6AV2124-0QC02-0AX1 TP1500 Comfort Panel is equipped with features that make it a powerful and dependable HMI solution for industrial environments:

• Display: 15.4-inch TFT screen with a resolution of 1280 x 800 pixels for crisp, detailed visuals.
• Color Support: Displays 16.7 million colors for vivid, true-to-life images and improved operator visibility.
• Backlight: Adjustable, dimmable backlight for optimal viewing in both bright and low-light conditions.
• Memory: Equipped with Flash and RAM memory, providing 24 Mbyte of available storage for efficient processing and quick access to operational data.
• Mounting: Designed for vertical mounting to fit a variety of industrial setups with ease.
• Weight: Compact design with a shipping weight of 9 lbs, making installation and transport straightforward.
• Connectivity: Two Ethernet ports and two USB interfaces for versatile network integration and peripheral connections.
• Protocols Supported: Profinet, IRT, MRP, Profibus, MPI for compatibility with a wide range of automation systems.
• Power Requirements: Operates on DC voltage with an input consumption of 1.7 A for efficient performance.
• Keyboard: Built-in alphanumeric keyboard for fast, precise user input.

Frequently Asked Questions (FAQs) - Siemens 6AV2124-0QC02-0AX1

What is the primary function of the Siemens 6AV2124-0QC02-0AX1?

This HMI serves as an interface for monitoring and controlling industrial processes, offering advanced visualization and interaction capabilities.

What type of display does the HMI have?

It features a 15.4-inch TFT display with 1280 x 800 pixels resolution and supports 16.7 million colors.

Can the backlight brightness be adjusted?

Yes, the backlight is dimmable, allowing operators to adjust screen brightness as needed.

What memory options are available?

The HMI includes both Flash and RAM, providing 24 MB of storage for data processing and system settings.

What communication protocols does this device support?

It supports Profinet, IRT, MRP, Profibus, and MPI, enabling seamless integration into various industrial automation systems.

How is the device mounted?

The Siemens 6AV2124-0QC02-0AX1 is designed for vertical mounting.

How many Ethernet and USB ports are included?

It has two Ethernet ports and two USB interfaces for flexible connectivity options.

What is the input power consumption of this HMI?

The device operates on DC voltage and has an input consumption of 1.7 A.

Is the HMI compliant with international standards?

It meets CE mark, cULus, RCM, KC, and EAC standards, ensuring compliance with global safety and performance regulations.

What is the warranty period for this device?

The Siemens 6AV2124-0QC02-0AX1 comes with a 2-year MRO Electric and Supply warranty, guaranteeing reliability and performance.

The Siemens 6AV2124-0QC02-0AX1 is a highly capable HMI that combines a high-resolution display, extensive connectivity options, and compliance with industry standards to provide a dependable solution for industrial automation. Its advanced features and user-friendly interface make it an excellent choice for enhancing operational efficiency in various applications.

Contact Us Today For More Information About the 6AV2124-0QC02-0AX1

Check out the rest of our Siemens product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 6AV2124-0QC02-0AX1, take a look at more from our HMIs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 6AV2124-0QC02-0AX1 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
