6SL3040-1MA00-0AA0

6SL3040-1MA00-0AA0

S120 Chassis Format Units

1 new in stock

Free 2 Day Shipping
1 year warranty

Categories

Part Number6SL3040-1MA00-0AA0
ManufacturerSiemens
SeriesSINAMICS
Weight5lbs
TypeControllers
Warranty1 year

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6SL3040-1MA00-0AA0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 12-month warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6SL3040-1MA00-0AA0 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6SL3040-1MA00-0AA0, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

This product weighs 5lbs. Want it shipped tomorrow?

  • Order within the next 23 hours and 35 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6SL3040-1MA00-0AA0 for credit when ordering from MRO Electric

Additional Information

The Siemens 6SL3040-1MA00-0AA0 is a Sinamics S120 central control module in which the closed-loop and open-loop functions are implemented for one or more Line Modules and/or Motor Modules. The module features 12 digital inputs, 8 digital inputs/outputs, 4 DRIVE-CLiQ interfaces, 1 PROFIBUS interface, 1 LAN (Ethernet) interface, 1 RS232 serial interface, an option slot, and 3 measuring sockets.

6SL3040-1MA00-0AA0 Diagram
6SL3040-1MA00-0AA0 Wiring Diagram

The 6SL3040-1MA00-0AA0 features integrated lateral holders, which allow it to be installed directly on a Line Module in book size format or on a power unit in chassis format. The holders required to do this are supplied together with the Line Modules and the power units in the chassis format.

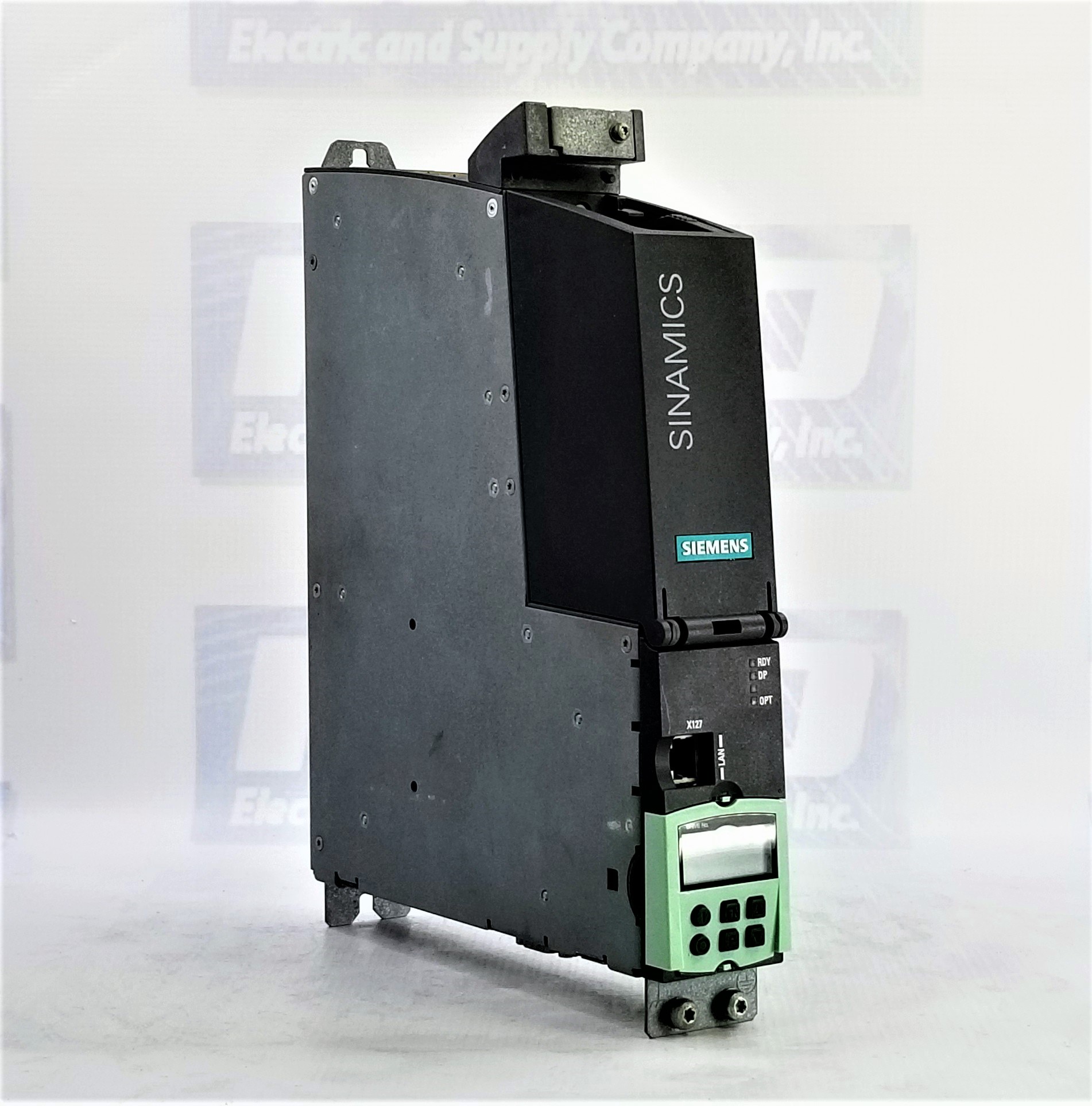

6SL3040-1MA00-0AA0
6SL3040-1MA00-0AA0

It is important to note that CompactFlash cards with firmware version 4.3 can only run a 6SL3040-1MA00-0AA0 / CU320-2 DP.  The card may only be removed and inserted when the module is in a voltage free state. Performing this during operation could result in a loss of data and potentially a plant standstill. If you are replacing your Control Unit, remove the CompactFlash card and keep it for insertion into the replacement unit. This is important to prevent the loss of data on the card.

CU320-2 DP Wiring Diagram
6SL3040-1MA00-0AA0 Diagram

An open input is interpreted by the CU320-2 DP as “low.” To enable the digital inputs function, terminal M1 must be connected. This is achieved by providing the ground reference of the digital inputs or a jumper to terminal M.

The 6SL3040-1MA00-0AA0 uses a 24V DC power supply voltage. It has a 1A DC current without the DRIVE-CLiQ or digital outputs. The module’s power loss is 24W, and the maximum DRIVE-CLiQ cable length is 100 meters. The unit weights precisely 2.3 kg.

Check out the rest of our Siemens product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 6SL3040-1MA00-0AA0, take a look at more from our SINAMICS line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
