ABE7R16M111

ABE7R16M111

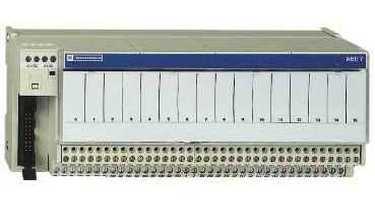

Sub-Base - Soldered Electromechanical Relays Abe7 - 16 Channels - Relay 5 Mm
Available - call for stock

2 year warranty

Categories

Part NumberABE7R16M111
ManufacturerSchneider Electric
SeriesModicon Communication
Weight1lb
TypeBases
Warranty2 year
Tightening torque5.31 lbf.in (0.6 N.m) (with flat Ø 3.5 mm)
Range of productAdvantys Telefast ABE7
Product or component typeSub-base with plug-in electromechanical relay
Sub-base typeOutput sub-base
[Us] rated supply voltage19...30 V conforming to IEC 61131-2
Number of channels16
Supply circuit typeDC
Product compatibilityABR7S11
Contacts type and composition1 NO
Status LED1 LED power ON
1 LED per channel channel status
Polarity distributionCommon distribution group of 4 + 2 inputs common terminals
Short circuit protection1 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Mounting modeBy clips on 35 mm DIN rail
By screws on surface mount with kit
Supply current<= 1 A
Voltage drop on power supply fuse0.3 V
Current per output common<= 5 A screw type terminals
[Ui] rated insulation voltage2000 V between terminals/mounting rails
300 V between coil circuit/contact circuits conforming to IEC 60947-1
Current per module<= 12 A
[Uimp] rated impulse withstand voltage2.5 kV
Installation categoryII conforming to IEC 60664-1

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ABE7R16M111 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 12-month warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ABE7R16M111 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ABE7R16M111, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

This product weighs 1lb. Want it shipped today?

  • Order within the next 8 hours and 57 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ABE7R16M111 for credit when ordering from MRO Electric

Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like ABE7R16M111, take a look at more from our Modicon Communication line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
