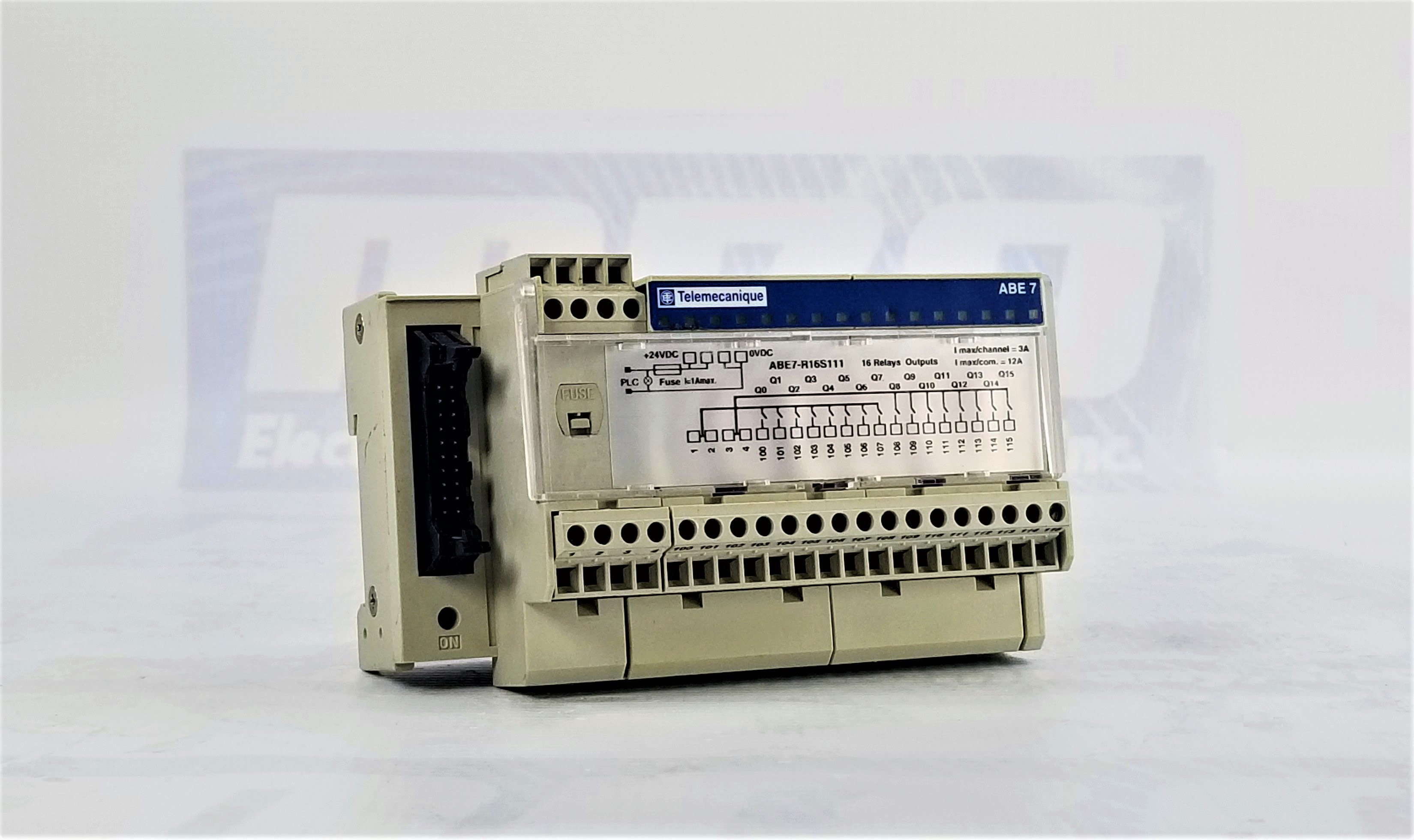

Schneider Electric ABE7R16S111

MODICON COMMUNICATION SUB-BASE - SOLDERED ELECTROMECHANICAL RELAYS ABE7 - 16 CHANNELS - RELAY 5 MM

5/5
1 rating

Select Condition

Refurbished

5 in stock

$275.00

Request a Quote
  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberABE7R16S111
ManufacturerSchneider Electric
TypeAccessories
Warranty2 Year
Tightening torque5.31 lbf.in (0.6 N.m) (with flat Ø 3.5 mm)
Range of productAdvantys Telefast ABE7
Product or component typeElectromechanical output relay sub-base
[Us] rated supply voltage24 V DC (PLC end)
Number of channels16
Number of terminal per channel1
Terminal block typeRemovable
Polarity distributionPolarity distribution contact common per group of 8 channels
Fixing modeBy clips on 35 mm symmetrical DIN rail
By screws on solid plate with fixing kit
Width4.92 in (125 mm)
Current per output common<= 12 A
Current per channel2 A (preactuator end)
Minimum switching current1 mA at >= 5 V
Drop-out voltage2.4 V at 68 °F (20 °C) (PLC end)
Switching frequency<= 0.5 Hz
<= 10 Hz
Threshold tripping voltage19.2 V at 104 °F (40 °C)
Drop-out current0.5 mA at 68 °F (20 °C)
Power dissipation per channel in W<= 0.22 W (PLC end)
Contacts type and composition1 NO(preactuator end)
Maximum switching voltage250 V AC 50/60 Hz conforming to IEC 60947-5-1
30 V DC conforming to IEC 60947-5-1
Number of channel per common8
Electrical durability500000 cycles, maximum switching current: 200 mA at 24 V DC-13 10 ms (preactuator end)
500000 cycles, maximum switching current: 400 mA at 230 V AC-15 (preactuator end)
500000 cycles, maximum switching current: 600 mA at 230 V AC-12 (preactuator end)
500000 cycles, maximum switching current: 600 mA at 24 V DC-12 (preactuator end)
Electrical reliability1e-008
Operating time<= 10 ms between coil energisation and NO closing
<= 6 ms between coil de-energisation and NO opening
Contact bounce time<= 5 ms 1 NO
Operating rate in Hz10 Hz no load
0.5 Hz at Ie
Mechanical durability20000000 cycles
[Uimp] rated impulse withstand voltage2.5 kV conforming to IEC 60947-1
[Ui] rated insulation voltage2000 V
Installation categoryII conforming to IEC 60664-1

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed ABE7R16S111 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this ABE7R16S111 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty ABE7R16S111, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 5lbs

Want it shipped tomorrow?

  • Order within the next 18 hours and 1 minute.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty ABE7R16S111 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric ABE7R16S111 Overview

Schneider Electric ABE7R16S111 Electromechanical Output Relay Sub-Base – Product Description

The Schneider Electric ABE7R16S111 is a highly reliable electromechanical output relay sub-base designed as part of the Advantys Telefast ABE7 product range. Engineered for optimal compatibility with PLC systems, this component simplifies signal connection and output control across industrial applications. With 16 output channels, the ABE7R16S111 is ideal for managing complex automation environments, offering efficient signal distribution and dependable performance for electromechanical outputs.

This unit features removable terminal blocks, allowing quick and easy wiring changes during installation or maintenance. Each channel is equipped with a single terminal, and the polarity distribution is configured with a common contact per group of 8 channels, streamlining system integration. Designed to be mounted via DIN rail clips or solid plate screws, it offers flexible installation options for control cabinets and industrial panels.

The supply voltage at the PLC end is 24 VDC, and each channel can handle up to 2 amps, with the output common supporting up to 12 amps. The ABE7R16S111 is built with high durability and reliability. Its mechanical durability is rated at 20 million cycles, and its electrical durability is up to 500,000 cycles, depending on switching conditions. This ensures long service life even in high-use environments.

Switching performance includes a maximum voltage of 250 V AC or 30 V DC, conforming to IEC 60947-5-1 standards, with one normally open (NO) contact per channel. The unit supports a switching frequency of up to 10 Hz, making it suitable for applications that require moderate-speed signal control. Response times are also fast, with ≤10 ms closing time, ≤6 ms opening time, and minimal contact bounce time of 5 ms.

The rated insulation voltage is 2000 V, and the impulse withstand voltage is 2.5 kV, supporting Category II installation environments, as per IEC 60664-1. Even in harsh industrial conditions, this component performs reliably with minimal signal interference.

MRO Electric and Supply offers the ABE7R16S111 with a 2-year warranty, free shipping, and immediate availability, helping maintenance teams minimize downtime and streamline replacements or system upgrades. Whether you're looking to build a new PLC-based control system or need a durable relay interface for an existing setup, this Schneider Electric relay sub-base delivers professional-grade performance with trusted quality.

Frequently Asked Questions About ABE7R16S111

What is the rated supply voltage for the ABE7R16S111?

The rated supply voltage is 24 V DC at the PLC end.

How many output channels does it support?

It supports 16 output channels.

Is the terminal block removable?

Yes, it features removable terminal blocks for ease of installation and maintenance.

How is the polarity distributed across channels?

There is a common contact per group of 8 channels.

Can it be mounted on a DIN rail?

Yes, it can be clipped onto a 35 mm DIN rail or screwed onto a solid plate using a fixing kit.

What is the maximum current per channel?

Each channel supports up to 2 A.

What's the total current supported per output common?

Up to 12 A per common.

What type of contact is used?

Each channel uses one normally open (NO) contact.

What is the maximum switching voltage?

It can switch to 250 V AC or 30 V DC, conforming to IEC standards.

What is the mechanical durability rating?

It is rated for 20 million cycles.

How long does it take for the contact to open or close?

It takes ≤10 ms to close and ≤6 ms to open.

What is the rated impulse withstand voltage?

2.5 kV according to IEC 60947-1.

Does it support AC and DC switching?

Yes, with specific ratings for both AC and DC switching loads.

What kind of installation environments is it suitable for?

It complies with Installation Category II, suitable for industrial environments.

What is the power dissipation per channel?

It's rated at ≤0.22 W per channel at the PLC end.

Is it immediately available from MRO Electric?

Yes, it is in stock and ships immediately with free shipping.

What's the minimum switching current?

It can switch as low as one mA at 5 V.

Is it compatible with Telefast ABE7 systems?

Yes, it's part of the Advantys Telefast ABE7 product family.

What is the tightening torque for terminals?

5.31 lbf. in (0.6 N·m) using a flat Ø 3.5 mm tool.

What are the relay's switching frequencies?

It can switch to 10 Hz with no load or 0.5 Hz under load.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Accessories from other manufacturers such as Modicon and ABB.
