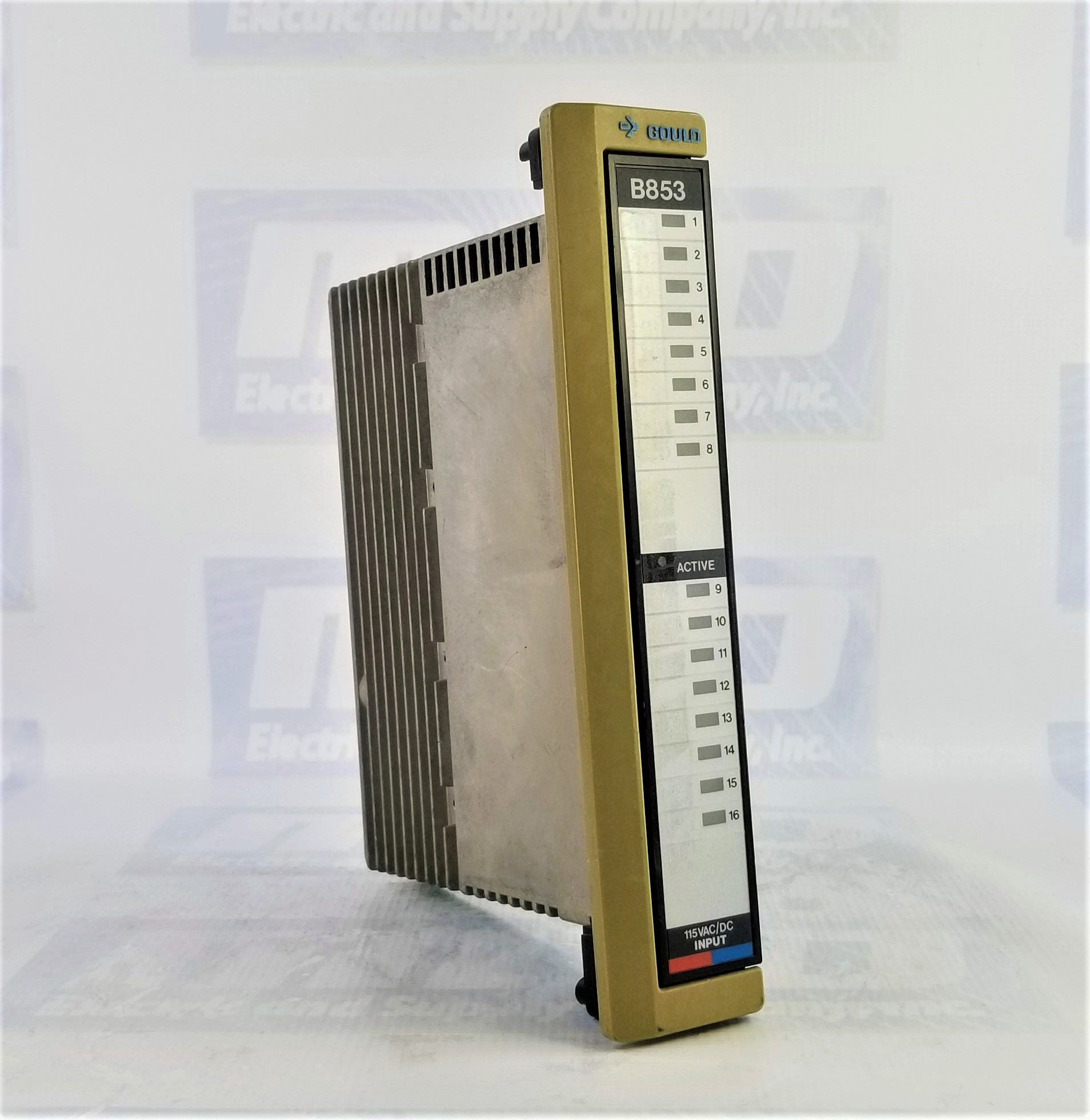

Schneider Electric AS-B853-016


ASB853016 - 800-Series I/O Module, Discrete In, 115 Vac, 16 pnts, 8 pnts per common

5 new in stock
1 remanufactured in stock
1 year warranty

Instant Price Quote


Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means cheaper prices and better service for you. For more products like AS-B853-016, take a look at more from our Modicon 984 Series line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.


ManufacturerSchneider Electric
SeriesModicon 984 Series
Terminal ConnectorAS-8534-000
Description115 Vac
Number of Points16
Operating Voltage80 ... 130 Vac / 47 ... 63 Hz;
Number of Groups2
Inputs per Group8
Max. Input Voltage
Continuous130 Vac
Surge150 Vac
280 V for 10 ms
ON Conditions> 80 Vac w/Inp Z of 1 K max.
OFF Conditions< 35 Vac
< 130 Vac w/Inp Z > 40 K
< 150 Vac w/Inp Z > 80 K
Wetting Current6 mA (typical) @ 125 Vdc
Max. Response Time
OFF to ON6 ms
ON to OFF18 ms
Power Required
+5 V40 mA
+4.3 V1 mA
5 V15 mA
Space Required1 slot
Weight2.75 lbs (1.25 kg)
