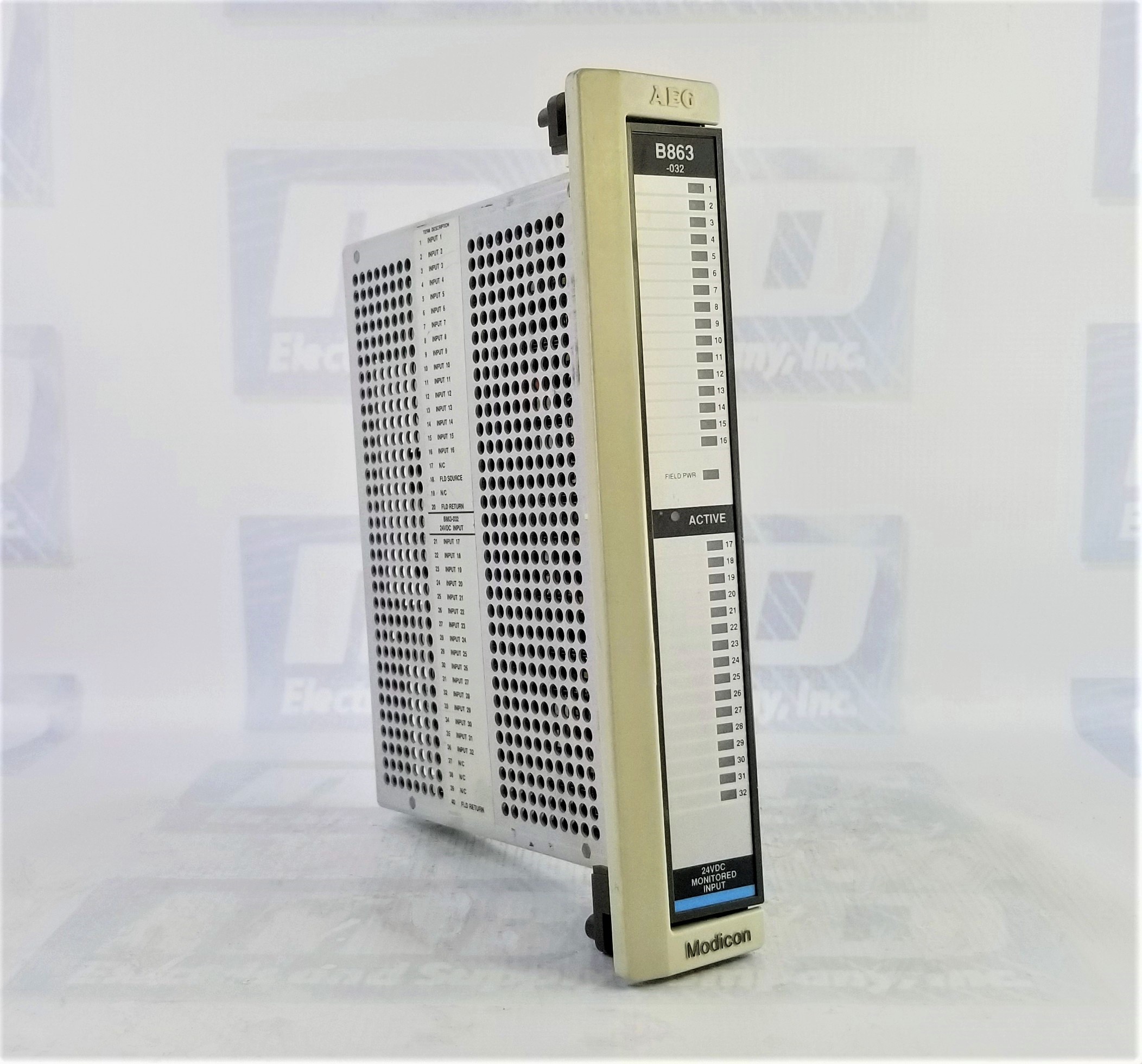

Schneider Electric AS-B863-032


ASB863032 - 800-Series I/O Module, Discrete In, 24 (monitored input) Vdc, 32 pnts, 16 pnts per common
1 year warranty
Call (800) 691-8511 for pricing
Request Quote


Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means cheaper prices and better service for you. For more products like AS-B863-032, take a look at more from our Modicon 984 Series line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.


ManufacturerSchneider Electric
SeriesModicon 984 Series
Terminal ConnectorAS-8535-000
Description24 Vdc hi-density monitored input
Type of OperationTrue High
Number of Points32
Operating Voltage18 ... 30 Vdc
Number of Groups2
Inputs per Group16
Max. Input Voltage
Continuous30 Vdc
Surge40 Vdc for 10ms
ON Conditions8 ... 11 kΩ
OFF Conditions6 ... 8 kΩ
Wetting Current2 mA (typical) @ 24 Vdc
Max Response Time
OFF to ON10 ms
ON to OFF10 ms
Power Required
+5 V250 mA
+4.3 V0 mA
5 V0 mA
External Power Supply24± 6 Vdc, 20 mA
Space Required1 slot
Weight2.31 lbs (1.05 kg)
