AS-B855-016

Schneider Electric AS-B855-016

AS-B855-016

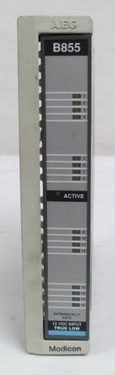

ASB855016 - 800-Series I/O Module, Discrete In, Vdc Intr. Safe, 16 pnts
1 new in stock
1 year warranty
Call (800) 691-8511 for pricing
Request Quote

Testimonials

Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means cheaper prices and better service for you. For more products like AS-B855-016, take a look at more from our Modicon 984 Series line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.

Specifications

ManufacturerSchneider Electric
SeriesModicon 984 Series
Terminal ConnectorAS-8534-000
Description12 Vdc intrinsically safe input
Mode of OperationTrue Low
Number of Points16
Operating Voltage11.4 ... 12.6 Vdc
Number of Groups1
Inputs per Group16
Max. Input Voltage
Continous12 Vdc (± 5%)
Surge500 Vdc for 3 ms
ON Conditions≤ 100 Ω total impedance
OFF Conditions>100,000 Ω; 0 Vdc
Max. Response Time
OFF to ON1 ms
ON to OFF5 ms
Power Required
+5 V80 mA
+4.3 V1 mA
5 V1.5 mA
External Power Supply12 Vdc± 5%, 1 A minimum
Space Required1 slot
Weight2.4 lbs (1.1 kg)
