Control Techniques SP2402

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Control Techniques

DESCRIPTION: 400V AC Panel Mount Drive

PRODUCT TYPE INFO: Unidrive SP2402

9 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberSP2402
ManufacturerControl Techniques
TypeAC Drives
Warranty2 Year
Typical Motor Output Power (HP)7.5
Input Voltage380 - 480VAC
Frame Size2
Normal Duty
Max Cont. Current (A)21
Typical Motor Output Power (kW)11
Typical Motor Output Power (HP)15
Heavy Duty
Max Cont. Current (A)16.5
Typical Motor Output Power (kW)7.5

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed SP2402 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this SP2402 we also repair a wide range of other Control Techniques products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty SP2402, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 19lbs

Want it shipped today?

  • Order within the next 14 hours and 11 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty SP2402 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Control Techniques SP2402 Overview

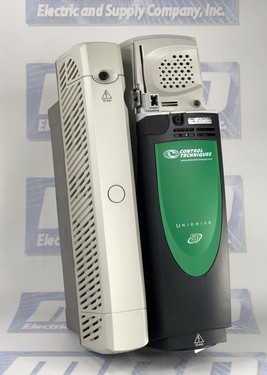

Control Techniques Drive module SP 2402

The 400V drive, rated size 2, SP 2402 is manufactured by Control Techniques.  It is a dual-rated drive module, working as either Normal duty or as heavy-duty depending on the setting on the motor rated current. The dual ratings are compatible with IEC60034 designed motors. These products are manufactured in United Kingdom and are designed for Metal production, paper processing, and material conveying usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Siemens and Yaskawa.

Normal Duty

The Control Techniques SP 2402 Unidrive module works with applications that use Self ventilated induction motors and require a low overload capability.  Full torque is not required at low speeds.  An example of this is fans and pumps. The Self ventilated induction motor requires increased protection against overload.  The increased protection is necessary due to the reduced cooling effect of the fan at low speed.

Heavy Duty

Heavy-duty use for the SP 2402 is for constant torque applications or applications which require a high overload capability, or full torque is required at low speed. This is seen with winders and hoists.  The thermal protection is set to protect force ventilated induction motors. It is set to protect permanent magnet servo motors by default. Both are by default.

Features

In normal duty mode, the SP 2402 possesses a maximum continuous output current rating of 21 A and a nominal power rating at 400V of 11 kW. The motor power at 460V is 15 hp. The Peak current is 23 A.

In heavy-duty, the Control Techniques SP 2402 has a maximum continuous output current of 16.5 A. It has a Closed-loop peak current of 28.8 A, and an Open-loop peak current rating of 24.7 A.  Heavy-duty Nominal power at 400V is 7.5 kW and Motor power at 460V is 10 hp.

The Size 2 Control Techniques Unidrive module SP 2402 input current, fuse, and cable size rating

Typical input current 20.2 A

Maximum continuous input current 21.4 A

Fuse rating Class CC or J** 30A 25 A

Cable size UL508C Input 10 AWG              Output 10 AWG

On a Size 2 SP 2402, the supply and motor ground connections are made using the grounding bridge that locates at the bottom of the drive.

SP 2402 Heat sink

The SP 2402 drive module supplies the heat sink fan internally.

Supplying the drive with DC / DC bus paralleling

The connecting of the DC bus between several drives is typically used for two different uses. First, connecting the DC bus between drives is used to return energy from a drive that is being overhauled by the load to a second motoring drive. It is also used to allow the use of one braking resistor to dissipate regenerative energy from several drives. There are, however, limitations to the combinations of drives that can be used in this configuration.

Low voltage DC power supply

The Control Techniques SP 2402 drive is operated from low voltage DC supplies, nominally 24Vdc (control) and 48Vdc (power). The low voltage DC power operating mode is designed for a couple of uses. It is used to allow for motor operation in an emergency backup situation. This happens following the failure of the AC supply, for example in elevators.  It is also used to limit the speed of a servo motor during the start-up of equipment. The working voltage range of the low voltage DC power supply is as follows:

Minimum continuous operating voltage: 36V

Minimum start-up voltage: 40V

Nominal continuous operating voltage: 48 to 72V

Maximum braking IGBT turn-on voltage: 95.4V

Maximum overvoltage trip threshold: 104.4V

FAQ

Q1: What is the SP 2402 Unidrive module, and who manufactures it?

A1: The SP 2402 is a 400V drive module, size 2, manufactured by Control Techniques.

Q2: How does the SP 2402 operate in terms of duty ratings?

A2: The SP 2402 is dual-rated, working as either normal duty or heavy duty based on the setting of the motor-rated current. It is compatible with IEC60034-designed motors.

Q3: Can you provide examples of applications for normal and heavy-duty use?

A3: Normal duty is suitable for applications like fans and pumps, while heavy duty is ideal for constant torque applications such as winders and hoists.

Q4: What are the key features of the SP 2402 in normal duty mode?

A4: In normal duty, the SP 2402 has a maximum continuous output current of 21 A, nominal power at 400V of 11 kW, and a peak current of 23 A.

Q5: What are the specifications for heavy-duty use of the SP 2402?

A5: In heavy-duty, the SP 2402 has a maximum continuous output current of 16.5 A, a closed-loop peak current of 28.8 A, and an open-loop peak current rating of 24.7 A. Nominal power at 400V is 7.5 kW, and motor power at 460V is 10 hp.

Q6: Can you provide information on input current, fuse, and cable size for Size 2 SP 2402?

A6: The typical input current is 20.2 A, the maximum continuous input current is 21.4 A, the fuse rating is Class CC or J** 30A 25 A, and the cable size is 10 AWG for both input and output according to UL508C.

Q7: How is the heat sink managed in the SP 2402?

A7: The SP 2402 drive module supplies the heat sink fan internally.

Q8: Is it possible to connect the DC bus between several drives, and what are its uses?

A8: Yes, connecting the DC bus between drives is used for energy return and regenerative energy dissipation. There are limitations to the combinations of drives in this configuration.

Q9: Can the SP 2402 be operated from a low-voltage DC power supply?

A9: Yes, it can be operated from a low-voltage DC supply (24Vdc for control and 48Vdc for power). This mode is designed for emergency backup situations and limiting the speed of a servo motor during startup.

Q10: What is the warranty period for the Control Techniques SP 2402 Unidrive module?

A10: The SP 2402 comes with a two-year warranty.

Contact Us Today For More Information About Control Techniques Products

Check out the rest of our Control Techniques product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like SP2402, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our SP2402 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
