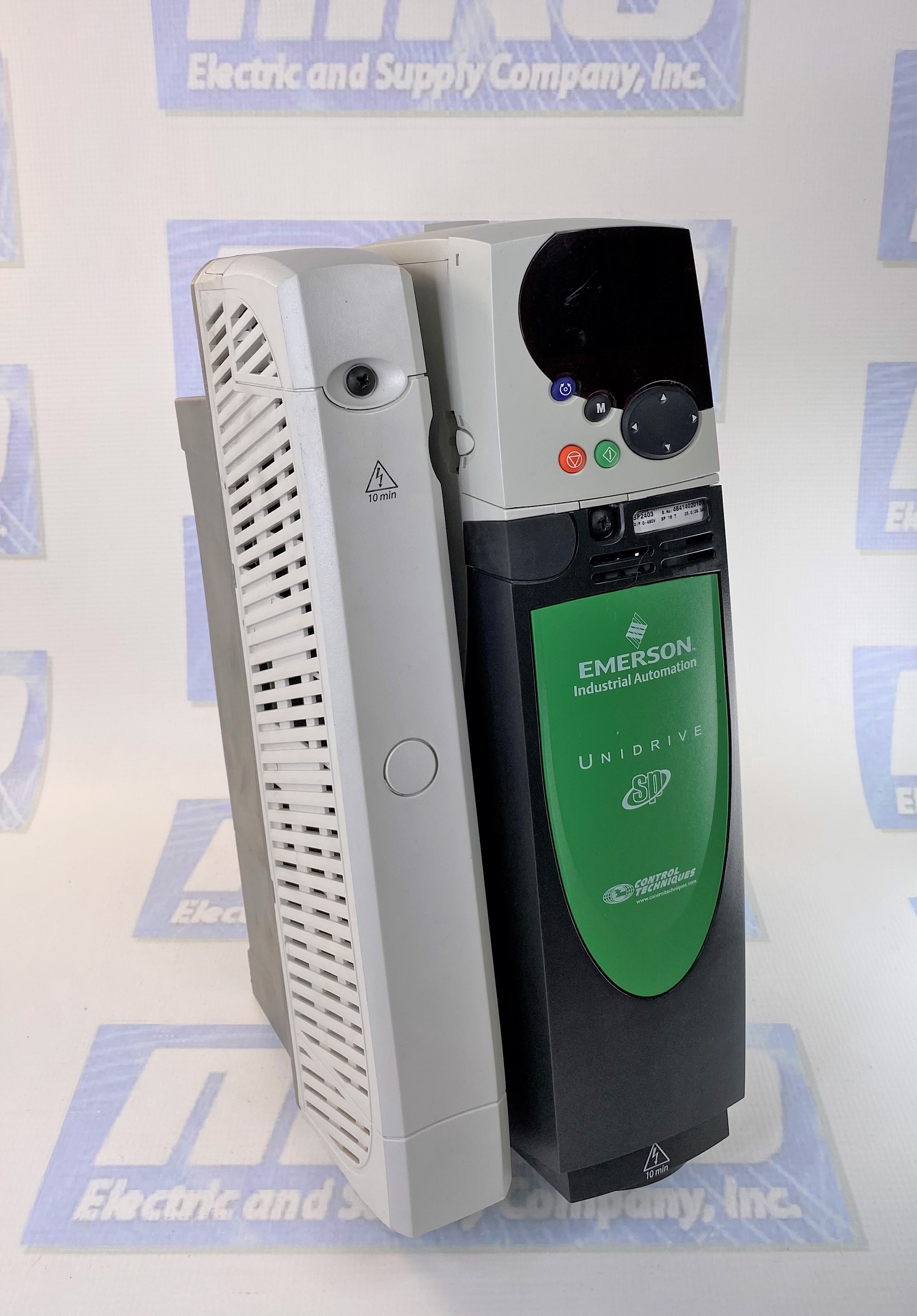

SP2403

SP2403

Rated 5/5 on 6 reviews

Rate this product


MANUFACTURER: Control Techniques

DESCRIPTION: 400V AC Panel Mount Drive

PRODUCT TYPE INFO: Unidrive SP



5 in stock
Ships Today

Free Shipping
2 Year warranty

Categories

Part NumberSP2403
ManufacturerControl Techniques
SeriesUnidrive SP
Model #SP2403
TypeAC Drives
Warranty2 Year
Typical Motor Output Power (HP)10
Input Voltage380 - 480VAC
Frame Size2
Normal Duty
Max Cont. Current (A)29
Typical Motor Output Power (kW)15
Typical Motor Output Power (HP)20
Heavy Duty
Max Cont. Current (A)25
Typical Motor Output Power (kW)11

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed SP2403 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this SP2403 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty SP2403, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 19lbs

Want it shipped today?

  • Order within the next 15 hours and 4 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty SP2403 for credit when ordering from MRO Electric

Additional Information

Control Techniques SP2403 Overview

The SP2403 Universal AC drive is part of the Control Techniques SP series. It has a maximum continuous output current of 29A and a nominal power rating of r 15kW at 400V. At 460V the drive can run a 20HP motor and has a peak current of 31A. SP2403 drives can be run in open and closed loop systems.

Features

The fast-acting electronic short-circuit protection of the output current that caps the fault current to around no more than five times the rated output current interrupts the current in about 20µs. You need no other short circuit protection. The drive gives you overload protection for both the cable and the motor. For this to happen the motor rated current has to be set to fit the motor. For example a 3 kHz frequency with 400 V nominal AC supply voltage has a max cable length of 660 feet. It features  a minimum resistance value of 19Ω and peak instantaneous power rating of 33.1 kW. The average power for 60s is 19.3kW.

For normal duty, the power and current ratings with maximum permissible continuous output current @ 40°C (104°F) ambient are 15 kW and 20 hp. The maximum permissible continuous output current (A) for a switching frequency of 3 kHz is 29.0 A, at 4 kHz is 27.2 A, at 6 kHz is 23.2 A, at 8 kHz is 20.0 A, at 12 kHz is 15.0 A and at 16kHz is 11.8 A.

For heavy duty, the maximum permissible continuous output current for the switching frequency is 25.0 A at 3 kHz, 23.7 A at 4 kHz,  19.9A at 6 kHz,  16.9A at 8 kHz,  12.8 A at 12 kHz, and 10.1A at 16 kHz.

Advantages

The default settings for the current limit parameters for the SP2403 is 150.1 % for open loop and 175 % for closed loop vectors. The default setting for the current limit parameters for servo is 161.2 %.

How to use a SP2403

The Unidrive SP series has a very diverse range of applications and power requirements. They are extremely flexible drives and have a range of power as well. Control Techniques / Nidec regard the series as having world class reliability due to the design of the drive, which includes onboard braking control and braking resistor. Additionally, option modules can be used in conjunction with the drives to increase the scale of the drive rather than needing to bring in a PLC system to run the SP2403.

The Control Techniques SP2403 comes with a two-year warranty.

Related Products

Find the Emerson SP2403 and more of our Control Techniques product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or sending us an email at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like SP2403, take a look at more from our Unidrive SP line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
