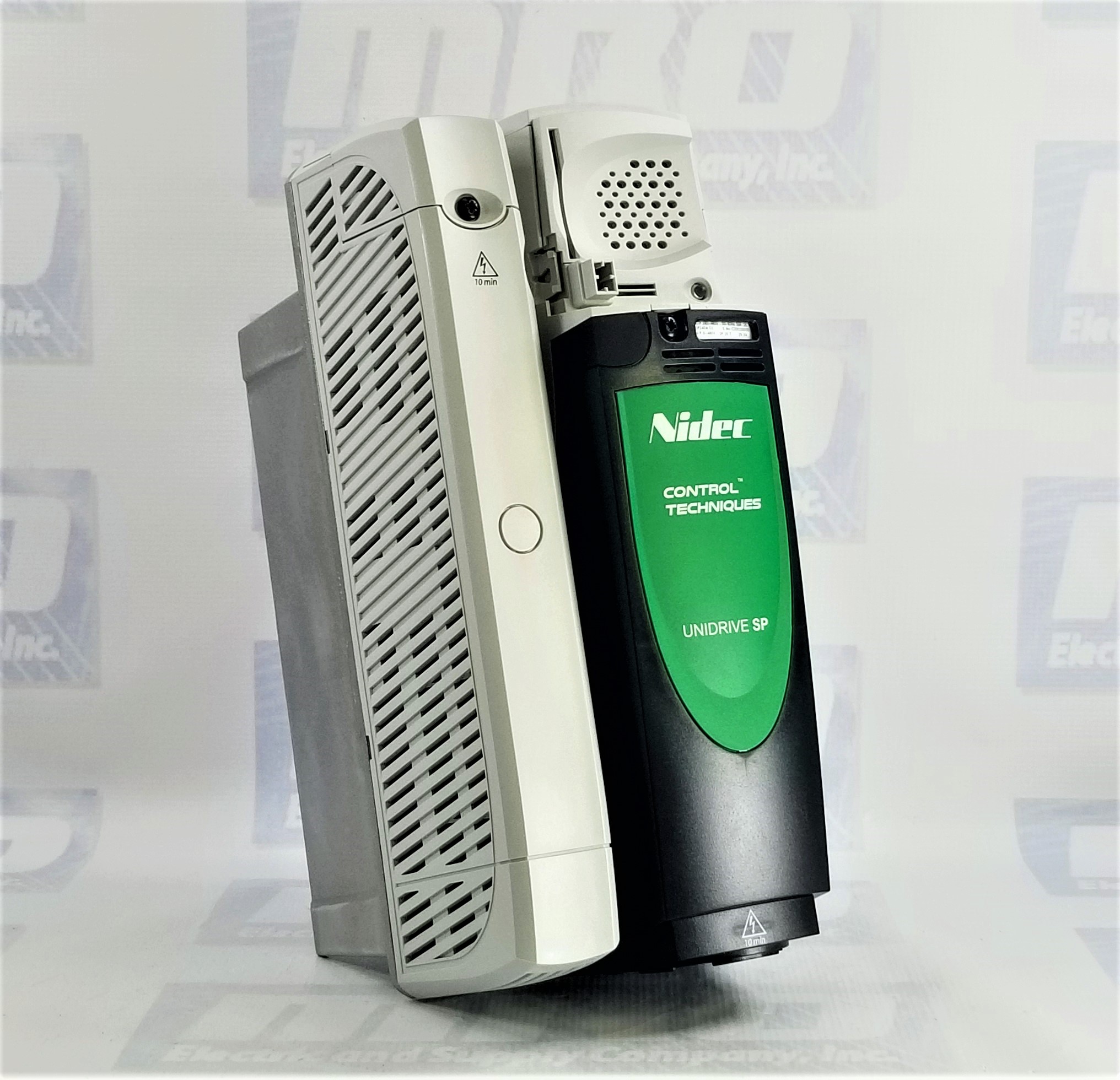

Control Techniques SP2404

Rated 5/5 on 1 review

Rate this product

MANUFACTURER: Control Techniques

DESCRIPTION: 400V AC Panel Mount Drive SP2404


3 in stock

Ships Today

Free Shipping

2 Year warranty

Part NumberSP2404
ManufacturerControl Techniques
TypeAC Drives
Warranty2 Year
Typical Motor Output Power (HP)20
Input Voltage380 - 480VAC
Frame Size2
Normal Duty
Max Cont. Current (A)29
Typical Motor Output Power (kW)15
Typical Motor Output Power (HP)20
Heavy Duty
Max Cont. Current (A)29
Typical Motor Output Power (kW)15

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed SP2404 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this SP2404 we also repair a wide range of other Control Techniques products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty SP2404, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 17lbs

Want it shipped today?

  • Order within the next 1 hour and 7 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty SP2404 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Control Techniques SP2404 Overview

The AC variable speed drive SP 2404 is a sturdy size 2 drive module manufactured by Control Techniques. The SP 2404 offers power and control in a precise package. It is a 3-phase drive that is manufactured for use with appropriate motors, controllers, and electrical protection components in an industrial system.


Control Techniques does not rate the SP 2404 for normal duty. For heavy-duty, the Control Techniques SP 2404 has a maximum continuous output current of 29 A. The open-loop peak current is 43.5 A and a closed-loop peak current of 50.7 A. The nominal power at 400 V is 15 kW and a 20 hp motor power at 460 V.

The fault current is limited to no more than five times the rated output current because the output circuit has quick-acting short-circuit protection in place. It interrupts the current in around 20 µs. The Control Techniques drive SP 2404 administers protection in the case of overload. It accomplishes this for the motor and the cable. Please check with the manual to ensure proper cable length for your frequency use is followed.

How to use an SP 2404

Procedure for changing the operating mode.

All parameters return to their default value when the operating mode is changed. The motor parameters are also returned to default values.  The two items not changed to default value are the Security status and the User security code.

To change the operating mode, ensure the drive is not enabled. Then enter either value 1253 or 1254 in Pr xx00.

The Control Techniques SP 2404 drive is easily programmable allowing for better control which gives you better performance. Smooth-running automation offers efficiency.

The SP 2404 AC variable speed drive offers two external EMC filter options to give you a little bit of flexibility. The two external EMC filter options are The Schaffner, which weighs 2.0 kg, and the Epcos which weighs 3.3 kg. Both EMC filters are able to be footprint mounted on the module or bookcase mounted and are both in compliance with general emission standards.

To understand if this is the right drive for you always check the values of the drive. Always take the time to ensure the current ratings match the part you are looking for.

The more you know about the SP 2404 output circuit and motor protection, the more likely you will be happy with your decision to purchase this drive.

The Control Techniques SP 2404 AC variable speed drive is able to grow with your business. It is able to keep up with the ever-changing landscape of the automation industry. It is energy-efficient, which keeps running costs at a minimum, and the use of the SP 2404 can help aid in loss due to downtime.

The SP 2404 is a high-performing, reliable drive that is the most efficient way to gain motor control. This energy-efficient drive is produced for advancing your automation, meeting the needs of your business.

Control Techniques products are manufactured in United Kingdom and are designed for Metal production, paper processing, and material conveying usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Siemens and Yaskawa.

Contact Us Today For More Information About Control Techniques Products

Check out the rest of our Control Techniques product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like SP2404, take a look at more from our AC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our SP2404 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
