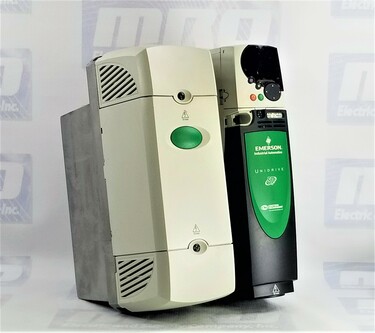

SP3401

SP3401

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Control Techniques

DESCRIPTION: 400V AC Panel Mount Drive

PRODUCT TYPE INFO:  Unidrive SP

1 in stock
Ships Today

2 Year warranty

Categories

Part NumberSP3401
ManufacturerControl Techniques
SeriesUnidrive SP
Model #SP3401
TypeAC Drives
Warranty2 Year
Typical Motor Output Power (HP)15
Input Voltage380 - 480VAC
Frame Size3
Normal Duty
Max Cont. Current (A)35
Typical Motor Output Power (kW)18.5
Typical Motor Output Power (HP)25
Heavy Duty
Max Cont. Current (A)32
Typical Motor Output Power (kW)15

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed SP3401 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this SP3401 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty SP3401, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 33lbs

Want it shipped today?

  • Order within the next 13 hours and 57 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty SP3401 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Control Techniques 3401 Overview

The Unidrive SP 3401 is a size 3 mounted Control Techniques drive module with many features to help enhance the performance of your system. The standard unidrive is manufactured for operating modes such as open-loop, closed-loop vector, servo, and regen.

Features of the Control Techniques SP 3401 unidrive includes:

The maximum continuous output current for the normal duty SP module is 35 A. The nominal power at 400 V is 18.5 kW. The motor power at 460 V is 25 hp. For this unit, the peak current is 38 A.

Mounting for the SP 3401

Using the appropriate brackets, the Unidrive SP 3401 can use either one of two mounting techniques. You can use either panel mounting or surface mounting. When this module is through-panel mounted, you must use a baffle plate for the proper level of airflow through the heatsink. How does this work? The baffle plate helps the heatsink to form chimney action for the airflow to move along the fins of the heatsink to help cool the module. This process happens naturally when it is surface mounted.

The Unidrive SP 3401 uses a bookcase filter for surface mounting only.

Identification is made easy with the Control Techniques module SP 3401. A nameplate is designated on the top surface with an easily visible drive rating label. Information such as model, drive type, power rating, customer and date code, drive ratings, and approval ratings.

Safety for the SP 3401

Safety during installation is imperative and all of the safety information must be followed for the safest installation of your unit. Before installation, the planning stage will help determine the best possible placement of the unidrive. Items under consideration are access, environmental protection, cooling, electrical safety, fire protection, electromagnetic compatibility, and avoiding hazardous areas.

Control Techniques offers several key points of information in the unit number itself. The Unidrive label tells you several things.  The SP indicates that a module is a unidrive unit. What can you find out from the number 3401? The first number, 3, indicates the size of the module. In this case, it is a size three drive. The second number, the 4, indicates the voltage rating. In this instance, its voltage rating is 400 V. The power rating is next, and for this unit, the 01 indicates the nominal rating for module 3401 is 15 kW @380 V and 25 hp @ 460 V. The output current for this unit is 34 A and the typical input current is 27 A.

Some of the features for this unit include a SMARTCARD slot, a keypad connection, a serial port connector, and an encoder connection. On the front right of the module, you will find the approvals label and the status LED. Under those features, you will find the solutions module slot 1 and beneath that, you will find slots 2 and 3. Finally, on the bottom right, you will find the control terminals and relay terminals.

The Control Techniques module Unidrive SP 3401 comes with a two-year warranty.

Product Description

The SP3401 is a 400V AC Panel Mount Drive that is manufactured by Control Techniques. These products are manufactured in United Kingdom and are designed for Metal production, paper processing, and material conveying usage. All of the products in the unidrive-sp line come with a 2 year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as Siemens and Yaskawa.
