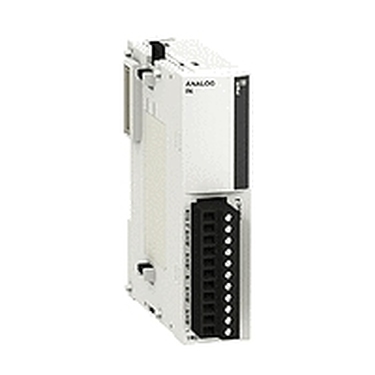

TM2AMI4LT

TM2AMI4LT

Analog Input Module M238- 4 Inputs Voltage/Current/Temperature- Non Differential
Available - call for stock

Free 2 Day Shipping
1 year warranty

Categories

ManufacturerSchneider Electric
SeriesModicon Magelis
Product weight0.085 kg
Range of productModicon M238 logic controller
Product or component typeAnalog input module
Analogue input number4
Analogue input typeCurrent 4...20 mA non differential
Voltage 0...10 V non differential
Temperature probe - 200...600 °C Pt 100/Pt 1000 non differential
Temperature probe - 50...150 °C Ni 100/Ni 1000 non differential
Cross talk<= 1 LSB
Range compatibilityAdvantys OTB
Twido
Analogue input resolution12 bits
LSB value0.2 °C temperature probe Pt 100/Pt 1000
0.05 °C temperature probe Ni 100/Ni 1000
2.5 mV voltage voltage
4.8 µA current current
Permissible continuous overload13 V voltage
40 mA current
Input impedance>= 10 kOhm temperature probe
10 kOhm voltage
470 Ohm current
Sampling duration<= 160 ms
Acquisition period160 ms per channel + 1 controller cycle time voltage/current
320 ms per channel + 1 controller cycle time temperature probe
Measurement error+/- 0.4 % of full scale Pt 100/Pt 1000, Ni 100/ Ni 1000 25 °C
+/- 0.2 % of full scale 0...10 V 0...10 V 25 °C
+/- 0.2 % of full scale 4...20 mA 4...20 mA 25 °C
Temperature coefficient+/- 0.004 %FS/°C temperature probe
+/- 0.009 %FS/°C current
+/- 0.009 %FS/°C voltage
Repeat accuracy+/-0.1 %FS
Non-linearity+/- 0.02 %FS
Total error+/-0.5 %FS
Type of cableShielded cable
Insulation between channel andPhotocoupler
SupplyExternal supply
[Us] rated supply voltage24 V DC
Supply voltage limits20.4...28.8 V
Electrical connection1 removable screw terminal block
Current consumption50 mA 5 V DC internal
60 mA 24 V DC external
