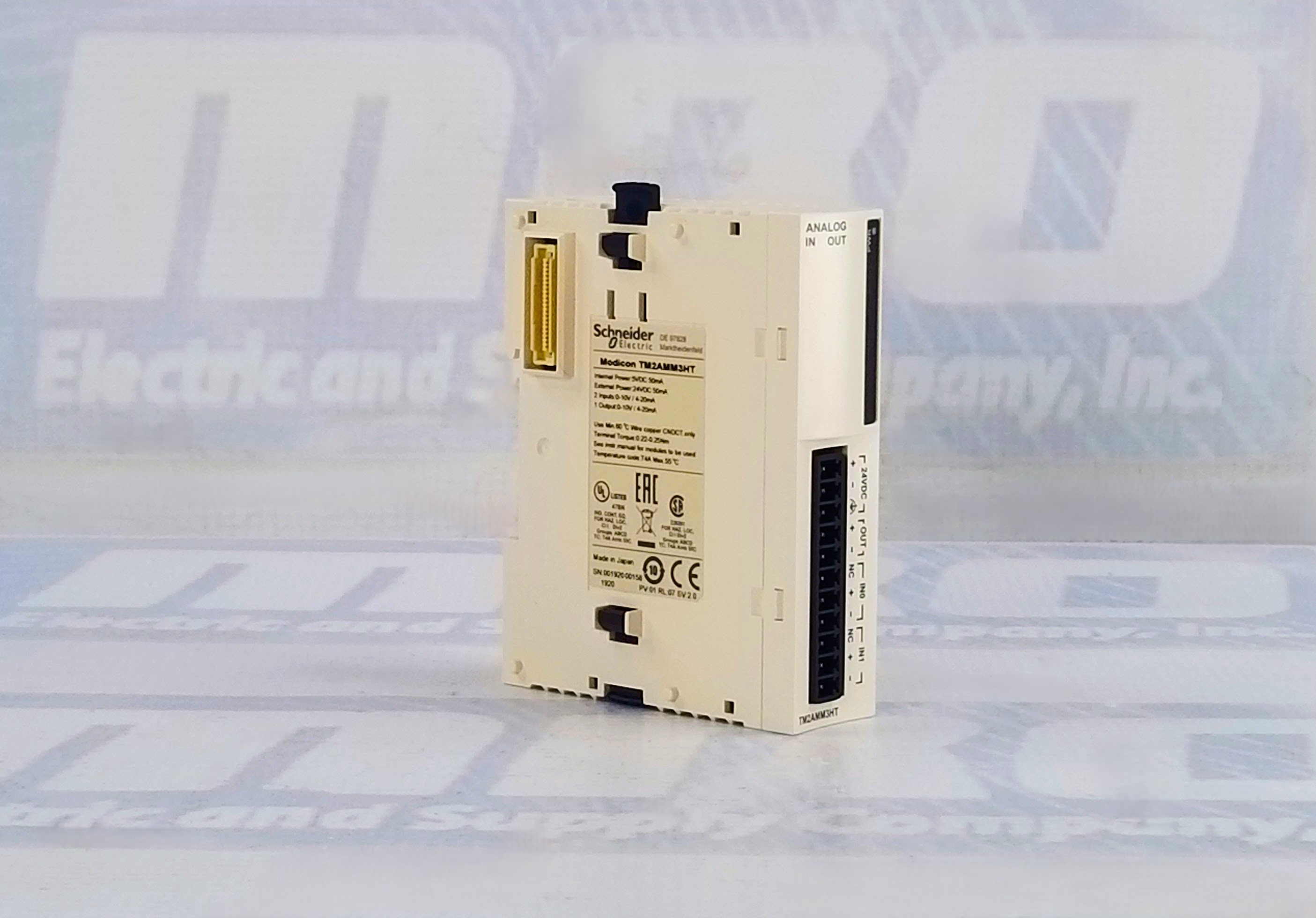

Schneider Electric TM2AMM3HT

ANALOG INPUT/OUTPUT MODULE M238 - 2 INPUTS VOLTAGE/CURRENT HIGH LEVEL - 1 OUTPUT

Select Condition

Refurbished

Request Quote

New

$475.00

1 in stock

Request a Quote
  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberTM2AMM3HT
ManufacturerSchneider Electric
TypeI/O Modules
Warranty2 Year
Product weight0.085 kg
Range of productModicon M238 logic controller
Product or component typeInput/Output analog module
Analogue input number2
Input levelHigh level
Analogue input typeCurrent 4...20 mA non differential
Voltage 0...10 V non differential
Analogue output number1
Analogue output typeCurrent 4...20 mA
Voltage 0...10 V
Cross talk<= 2 LSB
Range compatibilityAdvantys OTB
Twido
Analogue input resolution12 bits
Analogue output resolution12 bits
LSB value2.5 mV voltage voltage
4.8 µA current current
Permissible continuous overload13 V voltage
40 mA current
Input impedance>= 1 MOhm voltage
>= 10 Ohm current
Load typeResistive
Load impedance ohmic<= 300 Ohm current
>= 2000 Ohm voltage
Stabilisation time20 ms
Conversion time20 ms + 1 controller cycle time
Sampling duration<= 10 ms
Acquisition period60 ms per channel + 1 controller cycle time
Measurement error+/- 0.2 % of full scale 0...10 V 0...10 V 25 °C
+/- 0.2 % of full scale 4...20 mA 4...20 mA 25 °C
Temperature coefficient+/-0.006 %FS/°C 0...10 V
+/-0.006 %FS/°C 4...20 mA
+/-0.015 %FS/°C 0...10 V 0...10 V
+/-0.015 %FS/°C 4...20 mA 4...20 mA
Repeat accuracy+/-0.5 %FS input/output
Non-linearity+/- 0.2 %FS current current
+/- 0.2 %FS voltage voltage
Output error+/- 1 %FS
Output ripple<= 1 LSB
Total error+/-1 %FS current current
+/-1 %FS voltage voltage
Type of cableShielded cable
Insulation between channel andPhotocoupler
SupplyExternal supply
[Us] rated supply voltage24 V DC
Supply voltage limits19.2...30 V
Electrical connection1 removable screw terminal block
Current consumption50 mA 24 V DC external
50 mA 5 V DC internal

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TM2AMM3HT to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TM2AMM3HT we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TM2AMM3HT, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 5lbs

Want it shipped tomorrow?

  • Order within the next 17 hours and 6 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TM2AMM3HT for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TM2AMM3HT Overview

Schneider Electric TM2AMM3HT Analog I/O Module Overview

The Schneider Electric TM2AMM3HT is a versatile analog I/O expansion module designed for use with Modicon M238 logic controllers. With two high-level analog inputs and one analog output, it is ideal for monitoring and controlling process variables in automation systems that demand precision, speed, and reliability.

Dual Analog Inputs for Versatile Signal Acquisition

This module supports two non-differential analog inputs, compatible with both 4–20 mA current and 0–10 V voltage signals. Designed to read high-level process inputs such as pressure, temperature, or level signals, the TM2AMM3HT ensures accurate measurement with a 12-bit resolution, low cross-talk (≤ 2 LSB), and minimal error margins.

Single Analog Output for Reliable Control

The TM2AMM3HT features one analog output channel, which can be configured for either a 4–20 mA current or a 0–10 V voltage, depending on your application's specific needs. It features 12-bit output resolution, high repeat accuracy, and low output ripple (≤ 1 LSB), making it suitable for precise actuator control and analog signal transmission in industrial systems.

High Accuracy and Fast Response

With stabilization and conversion times of just 20 ms and a sampling duration of ≤ 10 ms, this module delivers fast and consistent analog signal processing. The acquisition period is 60 ms per channel, and the module maintains excellent measurement accuracy, with a ±0.2% full-scale error for both voltage and current at 25°C.

Robust Design and Easy Integration

The TM2AMM3HT is compatible with Modicon M238, Advantys OTB, and Twido systems. It supports shielded cabling, includes removable screw terminals for easy wiring, and features photocoupler insulation between channels for enhanced electrical protection. Its compact build and external 24 VDC supply (19.2–30 V) make it ideal for space-constrained installations.

Available Now with 2-Year Warranty

MRO Electric and Supply offers the Schneider Electric TM2AMM3HT in stock and available immediately, backed by a 2-year warranty. With fast shipping and expert customer service, MRO Electric ensures minimal downtime and dependable support for all your automation component needs.

Frequently Asked Questions

What is the Schneider Electric TM2AMM3HT used for?

It's an analog I/O module for signal acquisition and control in automation systems using Modicon M238, Twido, or Advantys OTB platforms.

How many analog inputs and outputs does it have?

The module features two analog inputs and one analog output.

What signal types does it support?

It supports 0–10 V voltage and 4–20 mA current signals for both input and output.

What is the resolution of the analog channels?

All analog channels have a 12-bit resolution, providing acceptable signal accuracy.

What kind of insulation is used between channels?

It uses photocoupler insulation for safety and signal integrity.

What is the rated supply voltage?

The module runs on 24 VDC, with a supply range of 19.2–30 VDC.

What is the maximum load for the current output?

It supports currents of ≤ 300 Ohms and voltages of≥ 2000 Ohms.

What kind of cables should be used?

Shielded cables are recommended for optimal performance and noise reduction.

How fast does the module acquire data?

Each channel has a 60 ms acquisition period plus one controller cycle time.

Is the TM2AMM3HT available now?

Yes, it's available immediately from MRO Electric, accompanied by a 2-year warranty.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TM2AMM3HT, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our TM2AMM3HT products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
