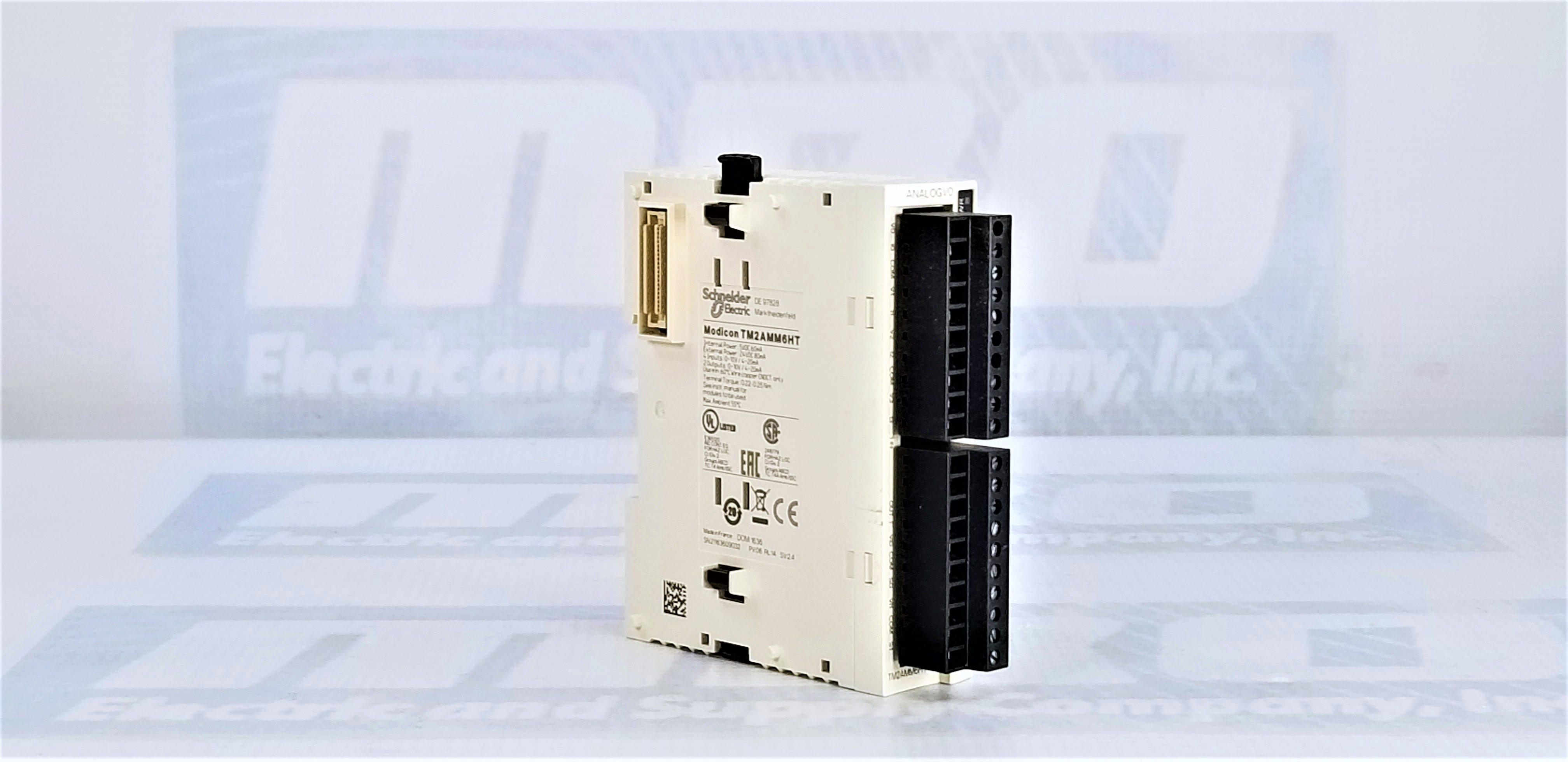

MODICON MAGELIS ANALOG INPUT/OUTPUT M238, 4 INPUTS VOLTAGE/CURRENT HIGH LEVEL - 2 OUTPUT
| Part Number | TM2AMM6HT |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Warranty | 2 Year |
| Product weight | 0.085 kg |
| Range of product | Modicon M238 logic controller |
| Product or component type | Input/Output analog module |
| Analogue input number | 4 |
| Input level | High level |
| Analogue input type | Current 4...20 mA non differential |
| Voltage 0...10 V non differential | |
| Analogue output number | 2 |
| Analogue output type | Current 4...20 mA |
| Voltage 0...10 V | |
| Cross talk | <= 2 LSB |
| Range compatibility | Advantys OTB |
| Twido | |
| Analogue input resolution | 12 bits |
| Analogue output resolution | 12 bits |
| LSB value | 2.5 mV voltage voltage |
| 4 µA current current | |
| Permissible continuous overload | 13 V voltage |
| 40 mA current | |
| Input impedance | <= 250 MOhm current |
| >= 1 Ohm voltage | |
| Load type | Resistive |
| Load impedance ohmic | <= 300 Ohm current |
| >= 2000 Ohm voltage | |
| Stabilisation time | 20 ms |
| Conversion time | 20 ms + 1 controller cycle time |
| Sampling duration | <= 16 ms |
| Acquisition period | 16 ms per channel + 1 controller cycle time |
| Measurement error | +/- 0.5 % of full scale 0...10 V 25 °C |
| +/- 0.5 % of full scale 4...20 mA 25 °C | |
| +/- 0.9 % of full scale 0...10 V 25 °C | |
| +/- 0.9 % of full scale 4...20 mA 25 °C | |
| Temperature coefficient | +/- 0.02 %FS/°C 0...10 V |
| +/- 0.02 %FS/°C 4...20 mA | |
| +/-0.015 %FS/°C 0...10 V 0...10 V | |
| +/-0.015 %FS/°C 4...20 mA 4...20 mA |
| Repeat accuracy | +/- 1 %FS output |
| +/-0.5 %FS input | |
| Non-linearity | +/- 0.4 %FS current |
| +/- 0.4 %FS voltage | |
| +/- 0.5 %FS current | |
| +/- 0.5 %FS voltage | |
| Output error | +/- 1 %FS |
| Output ripple | <= 1 LSB |
| Total error | +/- 1.5 %FS current |
| +/- 1.5 %FS voltage | |
| +/-1 %FS current current | |
| +/-1 %FS voltage voltage | |
| Type of cable | Shielded cable |
| Insulation between channel and | Photocoupler |
| Supply | External supply |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2...30 V |
| Electrical connection | 1 removable screw terminal block |
| Current consumption | 60 mA 5 V DC internal |
| 80 mA 24 V DC external |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed TM2AMM6HT to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this TM2AMM6HT we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty TM2AMM6HT, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty TM2AMM6HT for credit when ordering from MRO Electric
Schneider Electric presents the TM2AMM6HT, a versatile analog input/output module that seamlessly integrates with the Modicon M238 logic controller. Weighing just 0.085 kg, this compact module delivers exceptional performance across various industrial applications.
The TM2AMM6HT supports four analog input channels, accommodating current (4-20 mA) and voltage (0-10 V) signals. Its two analog output channels enable precise control through current (4-20 mA) or voltage (0-10 V) outputs. Whether handling voltage or current, its 12-bit resolution ensures accurate signal conversion.
Engineered for reliability, the TM2AMM6HT boasts a sturdy construction and adheres to strict quality standards. With a permissible continuous overload of 13 V for voltage and 40 mA for current, it reliably handles demanding environments. Its input impedance and load type specifications ensure compatibility with various industrial setups.
This module ensures precise measurements with a low error of +/- 0.5% of full scale at 25°C for voltage and current inputs and outputs. Temperature coefficients are minimized to ensure stability across varying environmental conditions, maintaining accuracy even with temperature fluctuations.
The TM2AMM6HT excels in efficiency and speed, with a fast stabilization time of just 20 ms and a conversion time of 20 ms plus one controller cycle time. Its sampling duration of <= 16 ms per channel ensures rapid data acquisition, which is crucial for real-time control applications.
Equipped with shielded cable connections and insulation through photocouplers, the TM2AMM6HT ensures reliable signal transmission and electrical isolation, essential for maintaining system integrity and safety in industrial environments.
Featuring a removable screw terminal block for electrical connections, installation, and maintenance are simplified, reducing downtime and enhancing overall system efficiency. With a low internal current consumption of 60 mA at 5 V DC and 80 mA at 24 V DC externally, it offers energy-efficient operation without compromising performance.
Q: What is the weight of the Schneider Electric TM2AMM6HT Analog I/O Module? A: The TM2AMM6HT Analog I/O Module manufactured by Schneider Electric weighs approximately 0.085 kg.
Q: What is the range of products compatible with the TM2AMM6HT module? A: The TM2AMM6HT module is designed to integrate seamlessly with the Modicon M238 logic controller. Additionally, it is compatible with Advantys OTB and Twido systems, offering flexibility in system design and implementation.
Q: What types of analog signals does the TM2AMM6HT module support? A: The TM2AMM6HT module supports both analog input and output signals. It accommodates current signals ranging from 4 to 20 mA and voltage signals ranging from 0 to 10 V.
Q: What are the specifications for permissible continuous overload on the TM2AMM6HT module? A: The TM2AMM6HT module can withstand a continuous overload of up to 13 V for voltage inputs and 40 mA for current inputs.
Q: What is the resolution of the analog inputs and outputs on the TM2AMM6HT module? A: The TM2AMM6HT module features a resolution of 12 bits for both analog input and output channels, ensuring precise signal conversion and control.
Q: What is the electrical supply voltage required for the TM2AMM6HT module? A: The TM2AMM6HT module requires an external supply voltage of 24 V DC, with supply voltage limits ranging from 19.2 to 30 V, ensuring compatibility with various power systems.
Q: What type of cable connection does the TM2AMM6HT module utilize? A: The TM2AMM6HT module utilizes shielded cable connections for reliable signal transmission and insulation between channels through photocouplers, ensuring electrical isolation and system integrity.
Q: What is the typical current consumption of the TM2AMM6HT module? A: The TM2AMM6HT module has a low internal current consumption of 60 mA at 5 V DC and 80 mA at 24 V DC externally, ensuring energy-efficient operation without compromising performance.
Q: What is the conversion and sampling time of the TM2AMM6HT module? A: The TM2AMM6HT module features a conversion time of 20 ms plus one controller cycle time and a sampling duration of less than or equal to 16 ms per channel, ensuring rapid data acquisition and real-time control capabilities.
Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like TM2AMM6HT, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our TM2AMM6HT products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
