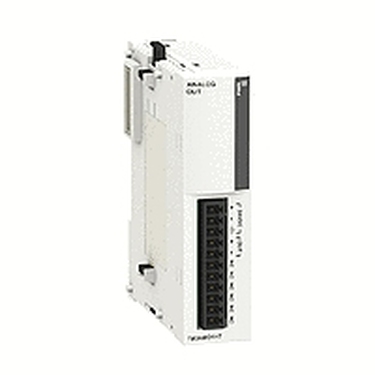

Analog Output Module M238 - 1 Output Voltage/Current - 1 Screw Terminal Block

Free Shipping
2 Year warranty
Part NumberTM2AMO1HT
ManufacturerSchneider Electric
Model #TM2AMO1HT
TypeI/O Modules
Warranty2 Year
Product weight0.085 kg
Range of productModicon M238 logic controller
Product or component typeAnalog output module
Analogue output number1
Analogue output typeCurrent 4...20 mA
Voltage 0...10 V
Range compatibilityAdvantys OTB
Analogue output resolution12 bits
LSB value2.5 mV voltage voltage
4.8 µA current current
Load typeResistive
Load impedance ohmic<= 300 Ohm current
>= 2000 Ohm voltage
Stabilisation time10 ms
Conversion time10 ms + 1 controller cycle time
Measurement error+/- 0.2 % of full scale 25 °C
Temperature coefficient+/-0.015 %FS/°C
Repeat accuracy+/-0.5 %FS
Non-linearity+/- 0.2 %FS
Output ripple<= 1 LSB
Total error+/-1 %FS
Type of cableTwisted shielded cable
Insulation between channel andPhotocoupler
SupplyExternal supply
[Us] rated supply voltage24 V DC
Supply voltage limits19.2...30 V
Electrical connection1 removable screw terminal block
Current consumption40 mA 24 V DC external
50 mA 5 V DC internal

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TM2AMO1HT to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TM2AMO1HT we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TM2AMO1HT, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 20 hours and 11 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TM2AMO1HT for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Product Description

The TM2AMO1HT is a Analog Output Module M238 - 1 Output Voltage/Curre... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products come with a 2 year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
