TSXAEY800

2-year Warranty

Same Day Shipping

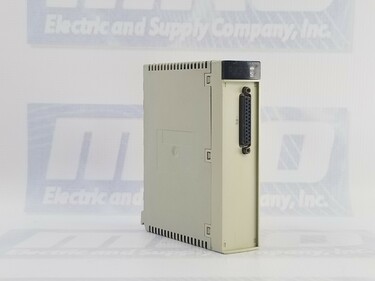

Schneider Electric TSXAEY800

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Schneider Electric

DESCRIPTION: Analog Input Module With Common Point - 8 I Multirange

PRODUCT TYPE INFO: Modicon Premium

4 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberTSXAEY800
ManufacturerSchneider Electric
TypeI/O Modules
Model #TSX-AEY-800
Warranty2 Year
Module formatStandard
Product or component typeAnalog input module
Analogue input number8
Analogue input typeCurrent 4...20 mA
Current 0...20 mA
Voltage +/- 10 V
Voltage 0...10 V
Voltage 0...5 V
Voltage 1...5 V
Analog/Digital conversion12 bits
Isolation between channelsCommon point
Input levelHigh level
Nominal read cycle time27 ms
Fast read cycle time3 ms + 3 ms x number of channels used
Measurement error0.15 % of full scale 0...5 V 25 °C
0.15 % of full scale 1...5 V 25 °C
0.19 % of full scale +/- 10 V 25 °C
0.19 % of full scale 0...10 V 25 °C
0.22 % of full scale +/- 10 V 0...60 °C
0.22 % of full scale 0...10 V 0...60 °C
0.22 % of full scale 0...5 V 0...60 °C
0.22 % of full scale 1...5 V 0...60 °C
0.25 % of full scale 4...20 mA 25 °C
0.25 % of full scale 0...20 mA 25 °C
0.41 % of full scale 4...20 mA 0...60 °C
0.41 % of full scale 0...20 mA 0...60 °C
Isolation between channels and bus1000 Vrms
Isolation between channels and ground1000 Vrms
Common mode between channelsNone
Maximum overvoltage on input-30...30 V at state 1 250 Ohm
-15...15 V at state 0 250 Ohm
Electrical connection1 connector SUB-D 25
Overcurrent-30...30 mA at state 1 250 kOhm
MarkingCE
Current consumption270 mA 5 V DC

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXAEY800 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXAEY800 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXAEY800, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 14 hours and 37 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXAEY800 for credit when ordering from MRO Electric

What is the part number of the cable used between the TSXAEY800 with ABE7CPA02 Telefast module?

  • The part number for that cable is TSXCAP030.
MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TSXAEY800 Overview

The TSXAEY800 is an analog input module that is designed to provide accurate and reliable analog input signals to a programmable logic controller (PLC) in industrial automation and control applications. This module is manufactured by Schneider Electric and is widely used in various industries such as automotive, aerospace, food and beverage, and many more. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.

Channels


The TSXAEY800 has eight analog input channels, which can be configured to accept various input signals such as current, voltage, and resistance. The input signals can range from 0-20mA, 4-20mA, 0-10V, and 1-5V, among others. The module supports high-level input signals, which means that it can receive signals from a variety of sensors and other devices that are used in industrial applications.

Signals


The module features 12-bit analog-to-digital (A/D) conversion, which ensures that the input signals are accurately digitized with high resolution. This high level of accuracy ensures that the PLC can accurately control the automation and control processes, leading to improved product quality and reduced production costs.


The TSXAEY800 also features isolation between channels, which ensures that each input signal is electrically isolated from the other channels. This prevents interference between channels, resulting in improved signal integrity and reduced noise. Additionally, the module has 1000 Vrms isolation between channels and ground, which provides an added layer of safety and protects against electrical shocks.

Cycle time


The nominal read cycle time of the TSXAEY800 is 27ms, which means that the module can take a reading of all eight input channels within this time frame. The fast read cycle time is 3ms plus 3ms per channel, which allows the module to respond quickly to changes in the input signals. This fast response time is critical in industrial applications where quick response times are necessary to prevent damage to equipment or ensure safety.

Applications
The module also has excellent measurement accuracy, which is critical in industrial applications where accurate and precise control is necessary. The measurement error of the module varies between 0.15% and 0.41%, depending on the input signal and temperature. However, even at its highest error rate, the TSXAEY800 still provides high-quality and accurate readings.

Standards


The TSXAEY800 module has a CE marking, indicating that it meets the relevant safety and quality standards set by the European Union. The module requires a 5V DC power supply and has a current consumption of 270mA, making it an energy-efficient and cost-effective solution for analog input requirements.


FAQ: Schneider Electric TSXAEY800 Analog Input Module

What is the TSXAEY800 Analog Input Module used for?

The TSXAEY800 is an analog input module designed for industrial automation systems. It interfaces with sensors and transducers that provide analog signals.

What types of analog inputs does the TSXAEY800 support?

The module supports various types of analog inputs, including current (4-20 mA, 0-20 mA) and voltage (-10V to +10V, 0-10V, 0-5V, 1-5V), and provides eight input channels.

What is the resolution of the analog-to-digital conversion in the TSXAEY800 module?

The module features a 12-bit analog-to-digital conversion, ensuring accurate measurement and conversion of analog signals to digital data.

How fast is the read cycle time of the TSXAEY800 module?

The nominal read cycle time is 27 ms, while the fast read cycle time is 3 ms plus an additional 3 ms for each channel used, providing rapid data acquisition capabilities.

What is the measurement error of the TSXAEY800 module?

The measurement error varies depending on the input type and temperature conditions, ranging from 0.15% to 0.41% of full scale.

What isolation features does the TSXAEY800 module offer?

The module provides isolation between channels, the bus, and between channels and ground, ensuring reliable and safe operation in industrial environments.

What is the electrical connection method for the TSXAEY800 module?

The module features a SUB-D 25 connector for electrical connections, providing a convenient and secure interface for connecting to external devices.

What is the current consumption of the TSXAEY800 module?

The module consumes 270 mA at 5V DC, ensuring efficient use of power resources within the automation system.

How does the TSXAEY800 module handle overcurrent and overvoltage protection?

The module can handle overcurrent and overvoltage conditions, protecting against potential damage to the inputs with specified ranges for each.
