TSXDSY32T2K

2-year Warranty

Same Day Shipping

Schneider Electric TSXDSY32T2K

MODICON PREMIUM DISCRETE OUTPUT MODULE

5/5
2 ratings

Select Condition

Refurbished

2 in stock

New

4 in stock

$555.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberTSXDSY32T2K
ManufacturerSchneider Electric
TypeI/O Modules
Model #TSX-DSY-32T2K
Warranty2 Year
Module formatStandard
Product or component typeDiscrete output module
Discrete output number32
Discrete output typeSolid state protected
Discrete output voltage24 V DC positive EN/IEC 61131-2 19...30 V
Current per channel≤ 0.1 A
Current per module≤ 3.2 A
Leakage current< 0.1 mA 30 V
Tungsten load≤ 1.2 W
[Ures] residual voltage< 1.5 V
Response time1.2 ms
Paralleling of outputsYes : 3 maximum
Output overvoltage protectionBy transil diode
Reverse polarity protectionReverse mounted diode
Output overload protectionAutomatic trip
Short-circuit protectionAutomatic trip
Load impedance> 220 W at state 1
Insulation resistance> 10 MOhm 500 V
Power dissipation(1.6 W + 0.1 W x No of outputs)
Product compatibilityDial and Power
MarkingCE
Electrical connection2 connectors HE-10
Current consumption140 mA 5 V DC

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXDSY32T2K to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXDSY32T2K we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXDSY32T2K, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 23 hours and 49 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXDSY32T2K for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TSXDSY32T2K Overview

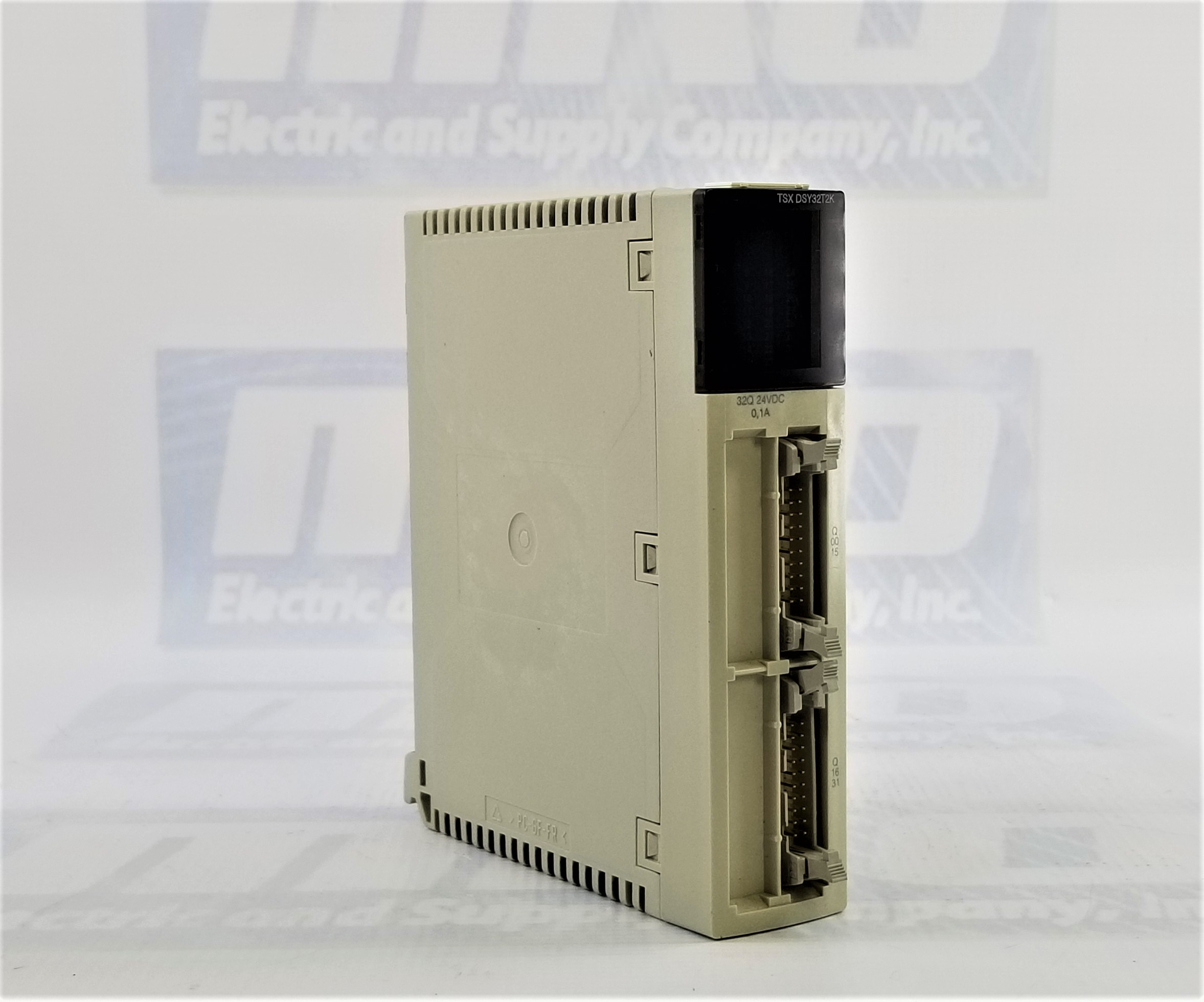

Schneider Electric TSXDSY32T2K I/O Module

The Schneider Electric TSXDSY32T2K is a highly reliable and efficient discrete output module for industrial automation systems. This module, part of the renowned TSX series, stands out due to its robust build and superior performance characteristics, making it ideal for various demanding applications.

Overview

The TSXDSY32T2K is classified under the I/O Modules category and embodies Schneider Electric's commitment to quality and innovation. It features a standard module format, ensuring compatibility and ease of integration into existing systems. This discrete output module is precisely engineered to manage solid-state protected outputs, offering enhanced durability and operational safety.

Technical Specifications

  • Discrete Output Count: The module supports up to 32 discrete outputs, allowing for extensive control and monitoring capabilities within a single unit.
  • Voltage and Current Ratings: Each output operates at a discrete output voltage of 24 V DC, compliant with EN/IEC 61131-2 standards, with an acceptable range of 19 to 30 V. The current per channel is capped at 0.1 A, while the total current for the module does not exceed 3.2 A.
  • Leakage and Residual Current: The TSXDSY32T2K maintains a leakage current of less than 0.1 mA at 30 V, and the residual voltage is kept under 1.5 V, ensuring minimal power loss and improved efficiency.
  • Load Capabilities: It supports tungsten loads up to 1.2 W and requires a load impedance more significant than 220 W in state 1.

Protection Features

The TSXDSY32T2K is equipped with multiple protection mechanisms to safeguard the module and connected devices:

  • Overvoltage Protection: A transil diode provides robust protection against voltage spikes, ensuring the longevity and reliability of the module.
  • Reverse Polarity Protection: A reverse-mounted diode guards against potential damage caused by incorrect polarity connections.
  • Overload and Short-Circuit Protection: The module features automatic trip functions for output overload and short-circuit conditions, preventing damage and maintaining operational integrity.

Performance and Efficiency

  • Response Time: The module boasts a swift response time of 1.2 milliseconds, facilitating quick and accurate output control.
  • Output Paralleling: It allows for paralleling outputs, with a maximum of three outputs paralleled, enhancing flexibility in circuit design and load management.
  • Power Dissipation: The power dissipation of the module is efficiently managed and calculated as (1.6 W + 0.1 W per active output), thereby ensuring optimal performance without excessive energy loss.

Connectivity and Compatibility

The TSXDSY32T2K features two HE-10 connectors for electrical connections, simplifying installation and ensuring secure connectivity. It is compatible with Dial and Power products, expanding its utility in various industrial setups.

Certification and Standards

This module adheres to the CE marking requirements, indicating compliance with essential health, safety, and environmental protection standards set by European legislation.

Insulation and Resistance

With an insulation resistance more significant than 10 MOhm at 500 V, the TSXDSY32T2K ensures high electrical isolation and safety levels. It also supports a current consumption of 140 mA at 5 V DC, highlighting its energy-efficient design.

FAQs for Schneider Electric TSXDSY32T2K I/O Module

What is the TSXDSY32T2K I/O Module used for?

The TSXDSY32T2K is a discrete output module used in industrial automation systems to control and monitor various output devices. It features 32 solid-state protected outputs, making it suitable for applications requiring reliable and efficient control of multiple outputs.

What is the output voltage range of the TSXDSY32T2K module?

The TSXDSY32T2K module operates at a discrete output voltage of 24 V DC, with an acceptable range of 19 to 30 V, compliant with EN/IEC 61131-2 standards.

How many outputs does the TSXDSY32T2K support?

The module supports up to 32 discrete outputs, providing extensive control capabilities within a single unit.

What protection features are included in the TSXDSY32T2K module?

The TSXDSY32T2K includes several protection features: overvoltage protection by transit diode, reverse polarity protection by a reverse-mounted diode, output overload protection, and short-circuit protection, both with automatic trip functions.

Can outputs be paralleled in the TSXDSY32T2K module?

Yes, the outputs of the TSXDSY32T2K module can be paralleled, with a maximum of three outputs being paralleled to enhance flexibility in circuit design and load management.

What is the response time of the TSXDSY32T2K module?

The response time of the TSXDSY32T2K module is 1.2 milliseconds, enabling quick and accurate output control.

How is the TSXDSY32T2K module connected to other devices?

The module uses two HE-10 connectors for electrical connections, ensuring secure and straightforward connectivity.

What is the current consumption of the TSXDSY32T2K module?

The TSXDSY32T2K module currently consumes 140 mA at 5 V DC, highlighting its energy-efficient design.

Is the TSXDSY32T2K module CE-marked?

The TSXDSY32T2K module is CE-marked, indicating compliance with European legislation's essential health, safety, and environmental protection standards.

What are the insulation resistance specifications for the TSXDSY32T2K?

The TSXDSY32T2K has an insulation resistance more significant than 10 MOhm at 500 V, ensuring high electrical isolation and safety levels.

What is the maximum current per channel for the TSXDSY32T2K module?

The maximum current per channel for the TSXDSY32T2K module is 0.1 A.

What is the total current limit for the TSXDSY32T2K module?

The total current limit for the TSXDSY32T2K module is 3.2 A.

What kind of load can the TSXDSY32T2K handle?

The TSXDSY32T2K can handle a tungsten load of up to 1.2 W and requires a load impedance more significant than 220 W at state 1.

What is the power dissipation formula for the TSXDSY32T2K module?

The TSXDSY32T2K module's power dissipation is calculated as (1.6 W + 0.1 W per active output), ensuring optimal performance without excessive energy loss.

Is the TSXDSY32T2K module compatible with other Schneider Electric products?

Yes, the TSXDSY32T2K module is compatible with Dial and Power products, expanding its utility in various industrial setups.
