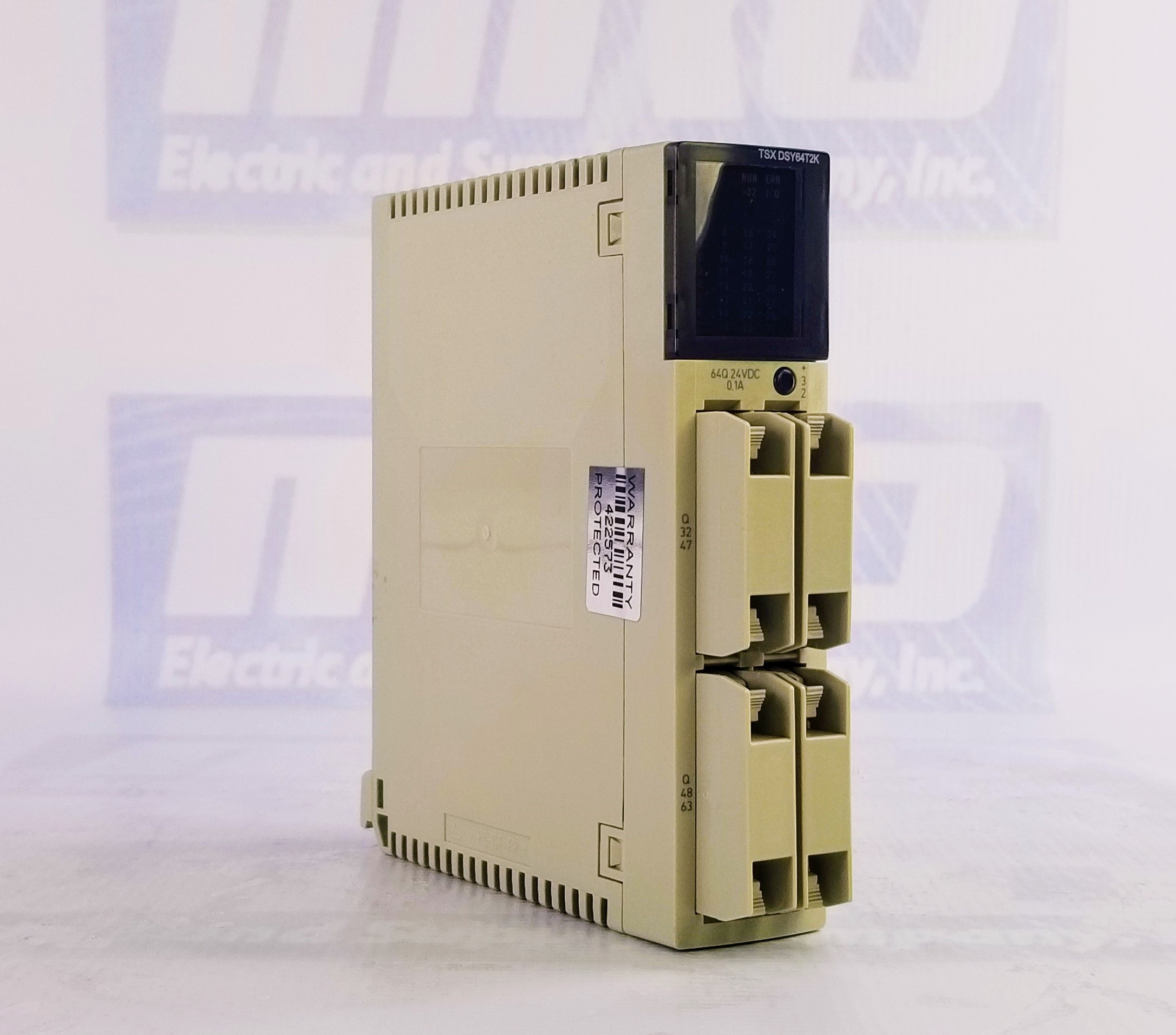

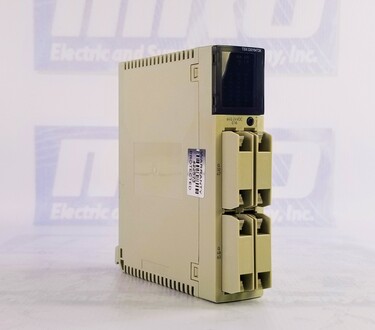

MODICON PREMIUM - 64 O SOLID STATE DISCRETE OUTPUT MODULE
| Part Number | TSXDSY64T2K |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | TSX-DSY-64T2K |
| Warranty | 2 Year |
| Module format | Standard |
| Product or component type | Discrete output module |
| Discrete output number | 64 |
| Discrete output type | Solid state protected |
| Discrete output voltage | 24 V DC positive EN/IEC 61131-2 19...30 V |
| Current per channel | ≤ 0.1 A |
| Current per module | ≤ 5 A |
| Leakage current | < 0.1 mA 30 V |
| Tungsten load | ≤ 1.2 W |
| [Ures] residual voltage | < 1.5 V |
| Response time | 1.2 ms |
| Paralleling of outputs | Yes : 3 maximum |
| Output overvoltage protection | By transil diode |
| Reverse polarity protection | Reverse mounted diode |
| Output overload protection | Automatic trip |
| Short-circuit protection | Automatic trip |
| Load impedance | > 220 W at state 1 |
| Insulation resistance | > 10 MOhm 500 V |
| Power dissipation | (2.4 W + 0.1 W x No of outputs) |
| Product compatibility | Dial and Power |
| Marking | CE |
| Electrical connection | 4 connectors HE-10 |
| Current consumption | 155 mA 5 V DC |
