170AAO12000

2-year Warranty

Same Day Shipping

Schneider Electric 170AAO12000

MODICON MOMENTUM DISTRIBUTED ANALOG OUTPUT- 4 OUTPUT - 0..20 MA

5/5
1 rating

Select Condition

Refurbished

10 in stock

New

1 in stock

$697.00

Request a Quote
  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number170AAO12000
ManufacturerSchneider Electric
TypeI/O Modules
Model #170-AAO-120-00
Warranty2 Year
Width5.57 in (141.5 mm)
Range of productModicon Momentum automation platform
Product or component typeAnalogue output base
Analogue output number4
Data formatFull 16 bits signed
Analogue output range+/- 10 V 12 bits + sign >= 1 kOhm
0...20 mA 12 bits + sign <= 0.6 kOhm
Load capacitance< 1 µF
Absolute accuracy error+/- 0.2 % of full scale +/- 10 V 77 °F (25 °C)
+/- 0.25 % full scale +/- 10 V 140 °F (60 °C)
+/- 0.3 % of full scale 0...20 mA 77 °F (25 °C)
+/- 0.4 % of full scale 0...20 mA 140 °F (60 °C)
Temperature drift10 %oFS/°C +/- 10 V 140 °F (60 °C)
30 %oFS/°C 0...20 mA 140 °F (60 °C)
Update time< 2 ms
Full scale10 V +/- 10 V
2 mA 0...20 mA
Fail stateHold
Reset to full scale
Reset to zero
Isolation between channels and ground500 V AC for 1 minute
Power dissipation in W<= 8.5 W
Protection typeInternal 2 A slow-blow
Output short-circuit protectionWith in voltage circuit
External power requirement+/- 30 V DC
24 V DC
Permissible common mode voltage250 V 47...63 Hz AC between channels to ground
250 V 47...63 Hz DC
Reverse polarity protectionInternal
MarkingCE
Local signalling4 LEDs channel status
Current consumption150 mA 24 V DC actuator
530 mA 24 V DC base
Module formatStandard
Height4.92 in (125 mm)
Depth1.87 in (47.5 mm)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 170AAO12000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 170AAO12000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 170AAO12000, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 17 hours and 46 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 170AAO12000 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 170AAO12000 Overview

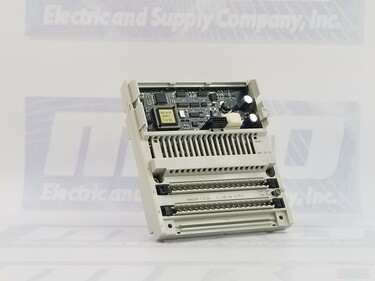

Schneider Electric 170AAO12000 Analog Output Module

The Schneider Electric 170AAO12000 is a precision analog output module designed for the Modicon Momentum automation platform. Engineered to deliver consistent and accurate analog signals to industrial systems, this module is ideal for process control applications requiring voltage or current output signals. Measuring 5.57 inches wide, 4.92 inches high, and 1.87 inches deep, the 170AAO12000 fits compactly within standard enclosures and control panels, offering high-density output capability without compromising space or efficiency. With four analog output channels, this module provides reliable communication between your automation system and analog actuators, such as valves or variable speed drives.

Advanced Output Performance and Accuracy

The 170AAO12000 offers four analog outputs, each supporting multiple signal formats including ±10 V and 0–20 mA. These outputs are driven by a 16-bit signed data format, ensuring exceptional resolution and signal fidelity for demanding applications. Accuracy is a hallmark of this model, with absolute error margins as low as ±0.2% of full scale at 77°F (25°C) for ±10 V signals, and ±0.3% for current outputs. Even at elevated temperatures up to 140°F (60°C), the module maintains remarkable stability with minimal drift. With an update time of less than 2 milliseconds, the module delivers fast, real-time responsiveness in dynamic control environments.

Durability, Safety, and Protection Features

Built for reliability, the Schneider 170AAO12000 includes several protective features, such as internal 2 A slow-blow fuses, reverse polarity protection, and short-circuit protection on the voltage circuit. Isolation between channels and ground is rated at 500 V AC for one minute, enhancing system safety and reducing interference. The permissible common-mode voltage is 250 V AC or DC between channels and ground, providing operational security in electrically noisy environments. The fail-safe states are configurable, allowing outputs to hold, reset to full scale, or reset to zero in case of faults, ensuring safe and predictable system behavior.

Power Requirements and LED Signaling

This analog module requires external power supplies of ±30 V DC and 24 V DC. The current consumption is 150 mA for actuator power and 530 mA for base power. With four integrated status LEDs—one for each channel—operators can easily monitor the operational state of each output in real-time. The module is CE marked and conforms to international standards, making it a reliable choice for global installations. Backed by a 2-year MRO Electric and Supply warranty, free shipping, and immediate availability, the 170AAO12000 is ready for deployment in your automation system today.
