170AAO92100

2-year Warranty

Same Day Shipping

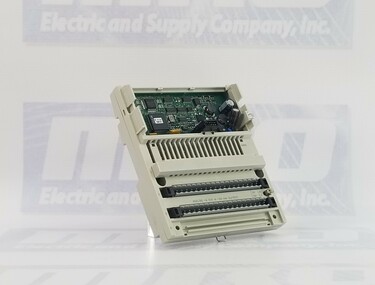

Schneider Electric 170AAO92100

MODICON MOMENTUM DISTRIBUTED ANALOG OUTPUT - 4 OUTPUT - 4..20 MA
5/5
1 rating

Select Condition

Refurbished

11 in stock

New

2 in stock

$639.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number170AAO92100
ManufacturerSchneider Electric
TypeI/O Modules
Model #170-AAO-921-00
Warranty2 Year
Width5.57 in (141.5 mm)
Range of productModicon Momentum automation platform
Product or component typeAnalogue output base
Analogue output number4
Data formatFull 16 bits signed
Analogue output range+/- 10 V 12 bits + sign >= 1 kOhm
4...20 mA 12 bits + sign <= 0.6 kOhm
Load capacitance< 1 µF
Absolute accuracy error+/- 0.2 % of full scale +/- 10 V 77 °F (25 °C)
+/- 0.25 % full scale +/- 10 V 140 °F (60 °C)
+/- 0.4 % of full scale 4...20 mA 77 °F (25 °C)
+/- 0.5 % of full scale 4...20 mA 140 °F (60 °C)
Temperature drift10 %oFS/°C +/- 10 V 140 °F (60 °C)
30 %oFS/°C 4...20 mA 140 °F (60 °C)
Update time< 2 ms
Full scale10 V +/- 10 V
2 mA 4...20 mA
Fail stateReset to full scale
Hold
Reset to zero
Isolation between channels and ground500 V AC for 1 minute
Power dissipation in W<= 8.5 W
Protection typeInternal 2 A slow-blow
Output short-circuit protectionWith in voltage circuit
External power requirement+/- 30 V DC
24 V DC
Permissible common mode voltage250 V 47...63 Hz AC between channels to ground
250 V 47...63 Hz DC
Reverse polarity protectionInternal
MarkingCE
Local signalling4 LEDs channel status
Current consumption150 mA 24 V DC actuator
530 mA 24 V DC base
Module formatStandard
Height4.92 in (125 mm)
Depth1.87 in (47.5 mm)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 170AAO92100 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 170AAO92100 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 170AAO92100, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 33 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 170AAO92100 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 170AAO92100 Overview

The Schneider Electric 170AAO92100 is an I/O module designed for use in the Modicon Momentum automation platform. It serves as an analog output base with four analog output channels. With its reliable performance and versatile features, this module is an excellent choice for industrial automation applications. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.

Operation

The module operates with a full 16-bit signed data format, ensuring accurate and precise analog output signals. It provides a wide analog output range, allowing for flexibility in various control and monitoring tasks. For loads greater than or equal to 1 kOhm, the module supports a +/- 10 V output range with 12 bits and a sign. For loads less than or equal to 0.6 kOhm, it offers a 4...20 mA output range with 12 bits and a sign. This versatility makes it suitable for a wide range of applications.

To maintain accuracy, the module has excellent absolute accuracy with a low error margin. At 77 °F (25 °C), the absolute accuracy error is +/- 0.2% of the full scale for +/- 10 V outputs and +/- 0.4% of the full scale for 4...20 mA outputs. The accuracy remains within +/- 0.25% at 140 °F (60 °C) for +/- 10 V outputs and within +/- 0.5% for 4...20 mA outputs. Additionally, the temperature drift is well-controlled at 10 %oFS/°C for +/- 10 V outputs and 30 %oFS/°C for 4...20 mA outputs at 140 °F (60 °C).

Features

The module offers fast update times, with a response time of less than 2 ms. This ensures that the analog outputs can quickly adapt to changes in input signals, providing real-time control and monitoring capabilities. The full-scale output values are 10 V for the +/- 10 V range and 2 mA for the 4...20 mA range.

In case of a failure or loss of signal, the module provides fail state options to ensure system stability. It can be set to reset to full scale, hold the last value, or reset to zero, depending on the application requirements.

Safety

Safety is a crucial aspect of the module's design. It features isolation between channels and ground, protecting up to 500 V AC for 1 minute. The module is also equipped with internal reverse polarity protection to prevent damage from incorrect wiring. With an internal 2 A slow-blow protection type and output short-circuit protection within the voltage circuit, the module ensures reliable and safe operation.

The module can be powered by an external power supply of either +/- 30 V DC or 24 V DC, allowing for flexibility in system integration. It can withstand permissible common mode voltages of up to 250 V AC or DC between channels and ground, operating within a frequency range of 47 to 63 Hz.

Design

Measuring 5.57 inches (141.5 mm) in width, 4.92 inches (125 mm) in height, and 1.87 inches (47.5 mm) in depth, the module has a standard format that is compatible with various automation systems. It is designed to meet the demanding requirements of industrial environments, with sturdy construction and the CE marking certifying its compliance with applicable European regulations.

Signaling

The module features local signaling through four LEDs, providing channel status indications for easy troubleshooting and diagnostics. It has a current consumption of 150 mA for the 24 V DC actuator and 530 mA for the 24 V DC base, ensuring efficient power usage. With a power dissipation of up to 8.5 W, the module operates within acceptable power limits.

In conclusion, the Schneider Electric Part Number 170AAO92100 is a reliable and versatile analog output base module designed for the Modicon Momentum automation platform. With its accurate and precise analog outputs, fast response times, robust safety features, and compatibility with various power supply options, it is an ideal choice for industrial automation applications requiring reliable control and monitoring of analog signals.
