|Width||5.57 in (141.5 mm)|
|Range of product||Modicon Momentum automation platform|
|Product or component type||Analogue output base|
|Analogue output number||4|
|Data format||Full 16 bits signed|
|Analogue output range||+/- 10 V 12 bits + sign >= 1 kOhm|
|4...20 mA 12 bits + sign <= 0.6 kOhm|
|Load capacitance||< 1 ÂµF|
|Absolute accuracy error||+/- 0.2 % of full scale +/- 10 V 77 Â°F (25 Â°C)|
|+/- 0.25 % full scale 4...20 mA 140 Â°F (60 Â°C)|
|+/- 0.4 % of full scale +/- 10 V 77 Â°F (25 Â°C)|
|+/- 0.5 % of full scale 4...20 mA 140 Â°F (60 Â°C)|
|Temperature drift||10 % full scale/Â°C +/- 10 V 140 Â°F (60 Â°C)|
|30 % full scale/Â°C 4...20 mA 140 Â°F (60 Â°C)|
|Update time||< 2 ms|
|Full scale||10 V +/- 10 V|
|2 mA 4...20 mA|
|Fail state||Reset to full scale|
|Reset to zero|
|Isolation between channels and ground||500 V AC for 1 minute|
|Power dissipation in W||<= 8.5 W|
|Protection type||Internal 2 A slow-blow|
|Output short-circuit protection||With in voltage circuit|
|External power requirement||+/- 30 V DC|
|24 V DC|
|Permissible common mode voltage||250 V 47...63 Hz AC between channels to ground|
|250 V 47...63 Hz DC|
|Reverse polarity protection||Internal|
|Local signalling||4 LEDs channel status|
|Current consumption||150 mA 24 V DC actuator|
|530 mA 24 V DC base|
|Height||4.92 in (125 mm)|
|Depth||1.87 in (47.5 mm)|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 170AAO92100C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 170AAO92100C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 170AAO92100C, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 170AAO92100C for credit when ordering from MRO Electric

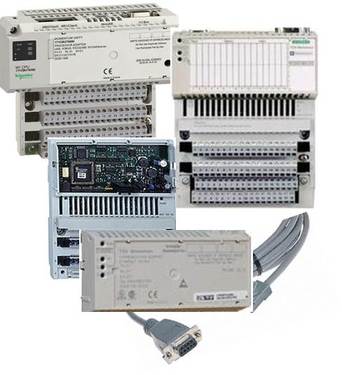

The 170AAO92100C is a Distributed Analog Output Modicon Momentum - Confo... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-communication line come with a 2 year warranty from MRO Electric. We also carry Momentum from other manufacturers such as Modicon and ABB.
