170ADO35000

2-year Warranty

Same Day Shipping

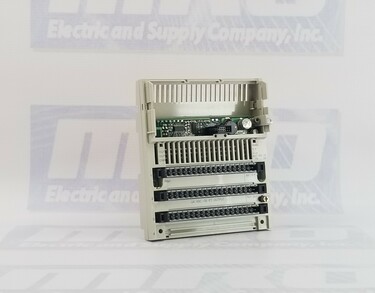

Schneider Electric 170ADO35000

MODICON MOMENTUM DISCRETE OUTPUT MODULE - 32 O SOLID STATE
4/5
1 rating

6 in stock


Free Shipping

2 Year warranty

Part Number170ADO35000
ManufacturerSchneider Electric
TypeI/O Modules
Model #170-ADO-350-00
Warranty2 Year
Width4.92 in (125 mm)
Range of productModicon Momentum automation platform
Product or component typeDiscrete output base DC
Group of channels2 groups of 16 outputs
Discrete output number32
Discrete output typeSolid state switch
Discrete output voltage24 V DC
Current per channel<= 0.5 A
Short-circuit protectionOutputs electronically protected
Protective treatmentTC
System Voltage24 V DC
Discrete output current16 A per module
8 A per group
Leakage current< 1 mA 24 V DC
Surge current5 A 1 ms
Voltage drop< 0.5 V 0.5 A at state 1
Output overload protectionOutputs electronically protected
Response time0.1 ms from state 0 to state 1
0.1 ms from state 1 to state 0
Isolation between channels and bus500 V AC
Power dissipation6 W typical
7.5 W maximum
MarkingCE
Local signalling32 LEDs channel status
Current consumption250 mA 24 V DC
Terminals description PLC n°1(8)OUT_DIS#8
(L+)PW_POS
(9)OUT_DIS#9
(3)OUT_DIS#3
(5)OUT_DIS#5
(2)OUT_DIS#2
(15)OUT_DIS#15
(10)OUT_DIS#10
(4)OUT_DIS#4
TB
(13)OUT_DIS#13
(7)OUT_DIS#7
(6)OUT_DIS#6
(16)OUT_DIS#16
(M-)PW_NEG
(1)OUT_DIS#1
(14)OUT_DIS#14
(12)OUT_DIS#12
(11)OUT_DIS#11
Terminals description PLC n°2(5)OUT_DIS#21
(3)OUT_DIS#19
(1L+)PW_POS
(2)OUT_DIS#18
(8)OUT_DIS#24
(4)OUT_DIS#20
(9)OUT_DIS#25
(10)OUT_DIS#26
(1)OUT_DIS#17
(14)OUT_DIS#30
TB_1
(11)OUT_DIS#27
(6)OUT_DIS#22
(2L+)PW_POS
(15)OUT_DIS#31
(7)OUT_DIS#23
(12)OUT_DIS#28
(16)IN_DIS#32
(13)OUT_DIS#29
Depth1.87 in (47.5 mm)
Height5.57 in (141.5 mm)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 170ADO35000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 170ADO35000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 170ADO35000, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 19 hours and 10 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 170ADO35000 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 170ADO35000 Overview

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.

The 170ADO35000, a discrete output module from Schneider Electric's Modicon Momentum automation platform, is a versatile and robust solution designed to facilitate precise control over digital outputs in industrial automation systems. With features and specifications tailored for industrial environments, this module plays a pivotal role in enhancing the functionality and efficiency of various automation applications.

Key Specifications

The 170ADO35000 belongs to the Modicon Momentum automation platform and is specifically designed for discrete output applications with a DC power source. It boasts a total of 32 discrete outputs, each featuring solid-state switching capabilities for reliability and precision. Operating at an output voltage of 24 V DC and a current rating of 0.5 A per channel, this module can effectively handle a wide range of load requirements.

Robust Design

One of the standout features of the 170ADO35000 is its robust and durable design, engineered to withstand the demanding conditions of industrial environments. It incorporates short-circuit protection, safeguarding the outputs against potential damage caused by electrical faults. Additionally, the module can handle surge currents of up to 5 A for 1 ms, making it well-prepared to manage unexpected electrical spikes without compromising performance. Its maximum voltage drop of less than 0.5 V at 0.5 A in state 1 ensures efficient power delivery to connected devices.

Terminal Flexibility

The module's terminal configuration offers flexibility to accommodate two separate Programmable Logic Controllers (PLCs). This flexibility simplifies the wiring and connectivity options, making it adaptable to a variety of control systems. Whether it's integrating with existing setups or facilitating custom configurations, the 170ADO35000 is designed with versatility in mind.

Environmental Considerations

This module is designed to meet industry standards for safety and performance. It carries certifications from CSA and UL, attesting to its compliance with rigorous industry requirements. Moreover, it demonstrates resistance to electrostatic discharge, making it suitable for environments where static electricity can pose a risk. Additionally, it can withstand electromagnetic fields, ensuring reliable operation even in areas with varying electromagnetic interference levels.

Applications

The 170ADO35000 module finds its applications across a spectrum of industrial automation scenarios. It excels in applications where precise control over digital outputs is essential. These applications encompass a wide range of industries, including manufacturing, process control, material handling, and more.

In manufacturing environments, this module is often used to control various devices such as solenoids, relays, and indicators, contributing to the efficiency and accuracy of production processes. In process control, it plays a vital role in managing and regulating processes by providing precise control over digital outputs.

Its adaptability makes it suitable for use in material handling systems, where it can control conveyor belts, sorters, and other equipment to streamline material flow and enhance overall operational efficiency.

Conclusion

In conclusion, the 170ADO35000 discrete output module from Schneider Electric's Modicon Momentum automation platform is an indispensable component in industrial automation systems. Its robust design, solid-state switching capabilities, and flexibility in terminal configuration make it a valuable asset for enhancing control and automation in industrial settings. Whether it's ensuring precise control in manufacturing, process control, or material handling applications, the 170ADO35000 module stands as a reliable and versatile solution to meet the demands of modern industrial automation.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 170ADO35000, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 170ADO35000 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
